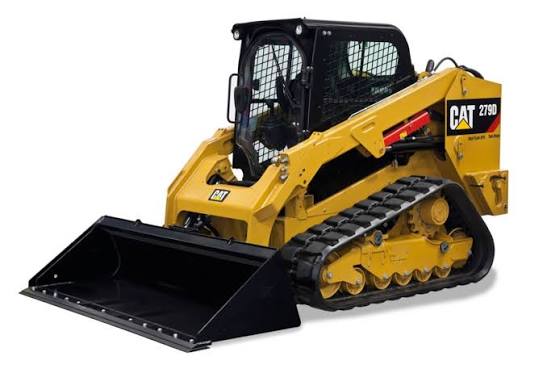

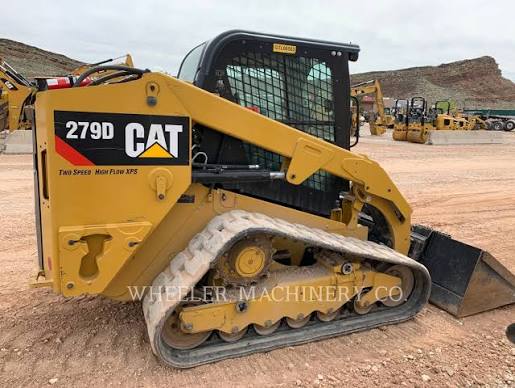

279D

Specifications

89 data points

Operating Specifications specifications
Operating Weight	9,892 lb
Max Speed - high range	7.1 mph
Max Speed - low range	4.5 mph
Fuel Capacity	24.9 gal
Hydraulic System Fluid Capacity	13.8 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	80 A
Breakout Force - Tilt Cylinder	7,285 lb
Tipping Load	5,870 lb
Rated Operating Capacities - 35% Tipping Load	2,055 lb
Rated Operating Capacities - 50% Tipping Load	2,935 lb
Rated Operating Capacity with Optional Counterweight	3,185 lb
Ground Contact Area - With 400 mm/15.7 in Track	2,015 in³
Ground Pressure - With 400 mm/15.7 in Track	5 psi
Ground Contact Area - With 450 mm/17.7 in Track	2,272 in³
Ground Pressure - With 450 mm/17.7 in Track	4 psi

Weights specifications
Operating Weight	9,893 lb

Hydraulic System specifications
Pump Flow	22.8 gal/min
Relief Valve Pressure	3,336 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	44.0 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure	3,335 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)	76.0 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow	32.0 gal/min

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	23 in
Length with Bucket on Ground	146 in
Width Over Tracks	77 in
Overall Height	158 in
Length with Bucket	146 in
Clearance at Max Lift and Dump	98 in
Dump angle	39 °
Bucket Pin Height - Maximum Lift	126 in
Bucket Pin Height - Carry Position	8 in
Maximum Overall Height	160 in
Clearance at Maximum Lift and Dump	98 in
Reach - Maximum Lift/Dump	23 in
Maximum Dump Angle	39 °
Rack Back Angle - Maximum Height	84 °
Departure Angle	32 °
Length - Track on Ground	64 in
Overall Length - Track	84 in
Overall Track Length	84 in
Turning Radius from Center - Bucket	89 in
Maximum Reach - With Arms Parallel to Ground	54 in
Turning Radius from Center - Coupler	56 in
Vehicle Width (400 mm/15.7 in tracks)	76 in
Vehicle Width (450 mm/17.7 in tracks)	78 in

General Specifications specifications
Operating Width IN. (CM)	78 (198) Starting 2019 Model Year
Engine Power HP (KW)	73 (54) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)	2,935 (1,331) Starting 2016 Model Year
Rated Operating Capacity LBS (KG) 50%	2,055 (932) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 35%	2,055 (932) Starting 2020 Model Year

Power Train specifications
Travel Speed - Forward or Reverse - One Speed	4.5 mph
Travel Speed - Forward or Reverse - Two Speed	7.0 mph

Air Conditioning System specifications
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Noise Level specifications
Inside Cab*	83 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)	***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Outside Cab**	103 dB(A)
