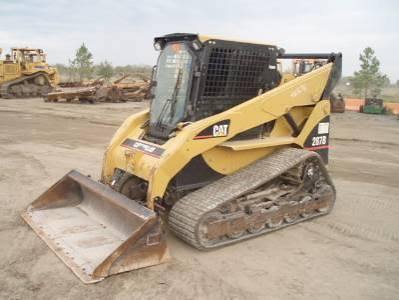

287B

Specifications

74 data points

Operating Specifications specifications
Operating Weight	10,274 lb
Max Speed - high range	7.0 mph
Fuel Capacity	29.1 gal
Hydraulic System Fluid Capacity	13.5 gal
Cooling System Fluid Capacity	2.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Engine Oil Capacity	2.7 gal
Breakout Force - Tilt Cylinder	5,508 lb
Tipping Load	7,200 lb
Rated Operating Capacities - 35% Tipping Load	2,520 lb
Rated Operating Capacities - 50% Tipping Load	3,600 lb
Ground Contact Area	2,610 in³
Ground Pressure	4 psi

Weights specifications
Operating Weight	10,275 lb

Hydraulic System specifications
Pump Flow	22.0 gal/min
Relief Valve Pressure	3,336 psi
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	42.8 hp
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	33.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	11 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	33 in
Length with Bucket on Ground	146 in
Width Over Tracks	78 in
Length with Bucket	146 in
Clearance at Max Lift and Dump	95 in
Turning Radius from Center - inc bucket	96 in
Turning Radius from Center - machine rear	64 in
Bucket Pin Height - Maximum Lift	128 in
Bucket Pin Height - Carry Position	9 in
Clearance at Maximum Lift and Dump	94 in
Maximum Overall Height	165 in
Turn Radius from Center - Coupler	60 in
Turn Radius from Center - Bucket	96 in
Maximum Reach - With Arms Parallel	54 in
Turn Radius from Center - Rear	64 in
Length - Track on Ground	73 in
Overall Length - Track	90 in
Reach at Maximum Lift/Dump	33 in
Bucket Pin Reach - Maximum Lift	16 in
Vehicle Width	77 in

Cab & Operator specifications
ROPS	SAE J1040 MAY94 ISO 3471:1994
FOPS	SAE J/ISO 3449 APR98 Level I ISO 3449:1992 Level I
FOPS Level II	SAE J/ISO 3449 APR98 Level II ISO 3449:1992 Level II
