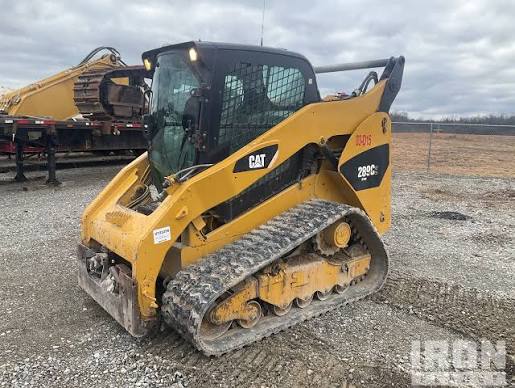

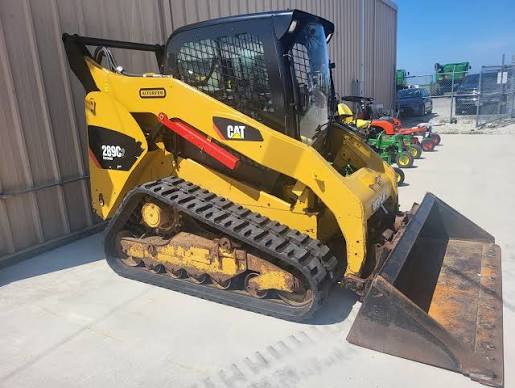

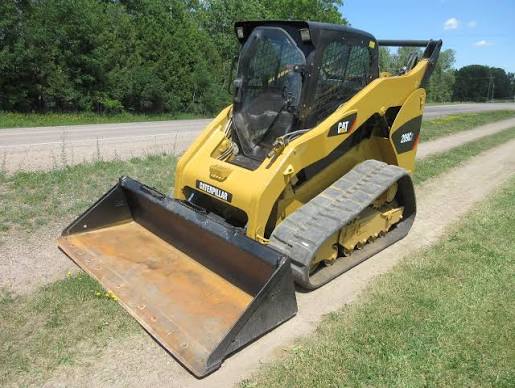

289C2

Specifications

80 data points

Operating Specifications specifications
Operating Weight	10,333 lb
Fuel Capacity	25.9 gal
Hydraulic System Fluid Capacity	15.1 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	90 A
Breakout Force - Tilt Cylinder	7,308 lb
Tipping Load	7,300 lb
Rated Operating Capacities - 35% Tipping Load	2,555 lb
Rated Operating Capacities - 50% Tipping Load	3,650 lb
Ground Contact Area	2,303 in³
Ground Pressure	5 psi
Travel Speed	8.5 mph

Weights specifications
Operating Weight	10,332 lb

Hydraulic System specifications
Pump Flow	22.2 gal/min
Relief Valve Pressure	3,336 psi
Pump Type	Standard
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	42.8 hp
Loader Hydraulic Flow	22.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	33.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	31 in
Length with Bucket on Ground	145 in
Width Over Tracks	78 in
Overall Height	161 in
Length with Bucket	145 in
Clearance at Max Lift and Dump	97 in
Turning Radius from Center - machine rear	69 in
Dump angle	50 °
Bucket Pin Height - Maximum Lift	128 in
Clearance at Maximum Lift and Dump	97 in
Maximum Overall Height	161 in
Bucket Pin Height - Carry Position	8 in
Turn Radius from Center - Bucket	88 in
Turn Radius from Center - Coupler	57 in
Turn Radius from Center - Rear	69 in
Maximum Reach - With Arms Parallel	51 in
Maximum Dump Angle	50 °
Departure Angle	44 °
Rack Back Angle - Maximum Height	85 °
Length - Track on Ground	64 in
Overall Length - Track	84 in
Reach at Maximum Lift/Dump	31 in
Bucket Pin Reach - Maximum Lift	15 in
Vehicle Width	78 in
Overall Track Length	84 in
Bucket hinge pin	128 in
