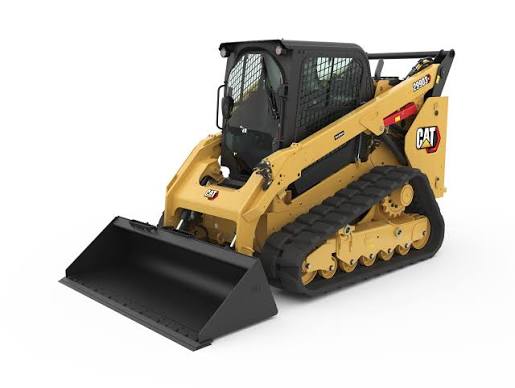

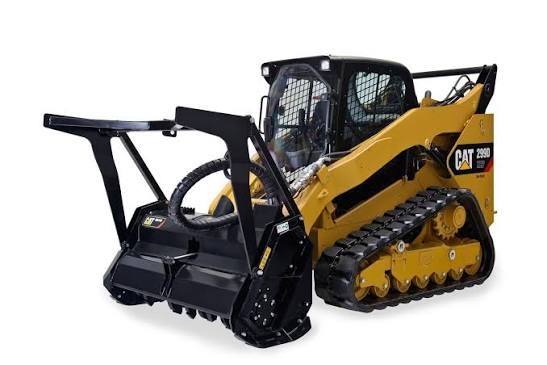

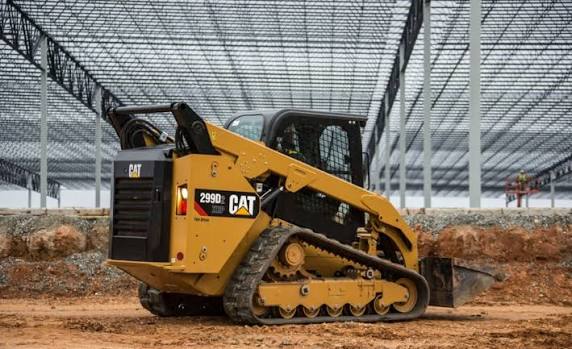

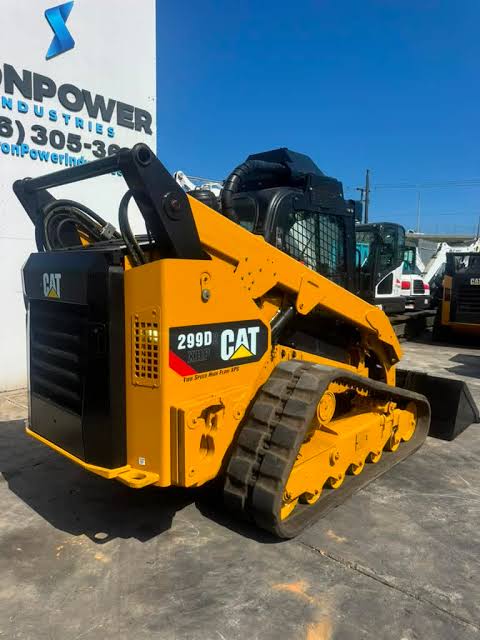

299D

Specifications

77 data points

Operating Specifications specifications
Operating Weight	10,898 lb
Max Speed - high range	8.5 mph
Max Speed - low range	5.0 mph
Fuel Capacity	31.0 gal
Hydraulic System Fluid Capacity	16.2 gal
Cooling System Fluid Capacity	3.7 gal
Operating Voltage	12 V
Alternator Supplied Amperage	100 A
Breakout Force - Tilt Cylinder	7,552 lb
Tipping Load	8,500 lb
Rated Operating Capacities - 35% Tipping Load	2,975 lb
Rated Operating Capacities - 50% Tipping Load	4,250 lb
Ground Contact Area	2,463 in³
Ground Pressure	4 psi
Rated Operating Capacity with Optional Counterweight	4,500 lb
Breakout Force - Lift Cylinder	6,122 lb

Weights specifications
Operating Weight	10,718 lb

Hydraulic System specifications
Pump Flow	23.0 gal/min
Loader Hydraulic Pressure	3,335 psi
Hydraulic Power	44.0 hp
Loader Hydraulic Flow	23.0 gal/min
Hydraulic Flow (1)	Standard
Hydraulic Flow (2)	High Flow XPS
Maximum Loader Hydraulic Flow	32.0 gal/min
Maximum Loader Hydraulic Pressure	4,061 psi
Hydraulic Power - Calculated	76.0 hp

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	84 in
Reach at Max Lift and Dump	31 in
Length with Bucket on Ground	152 in
Overall Height	159 in
Length with Bucket	124 in
Clearance at Max Lift and Dump	96 in
Turning Radius from Center - machine rear	73 in
Dump angle	52 °
Bucket Pin Height - Maximum Lift	127 in
Maximum Overall Height	158 in
Bucket Pin Height - Carry Position	8 in
Clearance at Maximum Lift and Dump	94 in
Turn Radius from Center - Bucket	91 in
Turn Radius from Center - Coupler	58 in
Turn Radius from Center - Rear	73 in
Maximum Reach - With Arms Parallel	50 in
Departure Angle	30 °
Rack Back Angle - Maximum Height	83 °
Maximum Dump Angle	52 °
Overall Length - Track	89 in
Bucket Pin Reach - Maximum Lift	16 in
Reach at Maximum Lift/Dump	31 in
Vehicle Width	78 in
Overall Track Length	90 in
