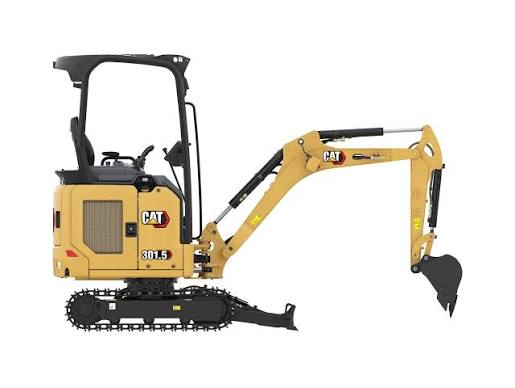

301.5

Specifications

77 data points

Operating Specifications specifications
Operating Weight	3,688 lb
Fuel Capacity	5.9 gal
Hydraulic Pump Flow Capacity	4.5 gal/min
Hydraulic System Fluid Capacity	9.8 gal
Hydraulic System Relief Valve Pressure	2,700 psi

Weights specifications
Operating Weight - With Cab	3,687 lb
Operating Weight	3,434 lb

Hydraulic System specifications
Operating Pressure - Equipment	2,734 psi
Operating Pressure - Swing	2,528 psi
Operating Pressure - Travel	2,734 psi
Digging Force - Bucket	2,843 lb
Digging Force - Stick - Standard	1,984 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	8.4 gal/min
Pump - Gear (Tandem)	4.2 gal/min
Pump - Gear (Single)	4.5 gal/min

Dimensions specifications
Ground Clearance	9 in
Height - Top of Cab	86 in
Length of Track on Ground	41 in
Tail Swing Radius	43 in
Width to Outside of Tracks	40 in
Removal Counterweight Clearance	19 in
Track Gauge	30 in
Shipping Length	145 in
Track Shoe Width	108 in
Maximum Digging Depth - Standard Stick	84 in
Maximum Reach - Ground Level - Standard Stick	143 in
Height - Over Cab	86 in
Maximum Dump Height - Standard Stick	94 in
Maximum Vertical Dig Depth - Standard Stick	65 in
Swing Radius - Rear	42 in
Maximum Cutting Height - Standard Stick	132 in
Maximum Horizontal Reach - Standard Stick	146 in
Width - Over Track	40 in
Center Ground Clearance	9 in
Height - Over Canopy	86 in
Width - Upper Structure	40 in
Stick Length - Standard Stick	36 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	84 in
Max Reach Along Ground	107 in
Max Vertical Wall Digging Depth	65 in
Max Loading Height	94 in
Max Cutting Height	131 in

Electrical System specifications
Electrical System Type	Twelve-volt system
