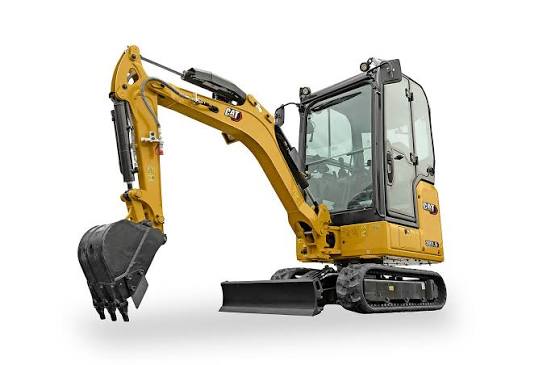

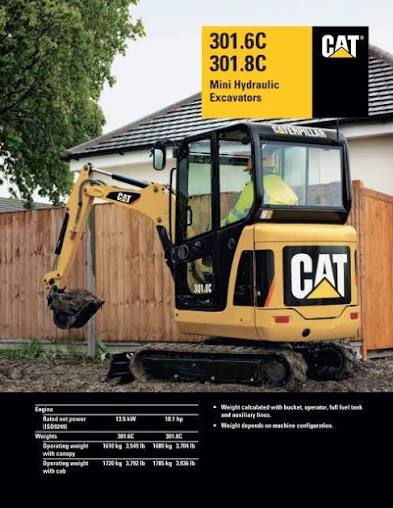

301.6C

Specifications

89 data points

Operating Specifications specifications
Operating Weight	3,792 lb
Fuel Capacity	5.8 gal
Hydraulic Pump Flow Capacity	10.5 gal/min
Hydraulic System Fluid Capacity	9.8 gal
Hydraulic System Relief Valve Pressure	2,988 psi
Operating Voltage	12 V
Alternator Supplied Amperage	40 A
Engine Oil Capacity	1.1 gal
Cooling System Fluid Capacity	1.1 gal

Weights specifications
Operating Weight - With Cab	3,792 lb
Operating Weight	3,549 lb

Hydraulic System specifications
Operating Pressure - Equipment	2,988 psi
Operating Pressure - Swing	2,524 psi
Operating Pressure - Travel	2,988 psi
Digging Force - Bucket	3,462 lb
Digging Force - Stick - Standard	2,226 lb
Digging Force - Stick - Long	1,978 lb

Dimensions specifications
Height - Top of Cab	86 in
Length of Track on Ground	62 in
Tail Swing Radius	43 in
Width to Outside of Tracks	39 in
Removal Counterweight Clearance	18 in
Transport Width	40 in
Track Gauge	30 in
Shipping Height	86 in
Shipping Length	145 in
Track Shoe Width	9 in
Height - Over Cab	86 in
Maximum Digging Depth - Standard Stick	81 in
Maximum Reach - Ground Level - Standard Stick	142 in
Maximum Dump Height - Standard Stick	93 in
Maximum Dump Height - Long Stick	97 in
Maximum Cutting Height - Standard Stick	132 in
Maximum Vertical Dig Depth - Standard Stick	64 in
Swing Radius - Rear	43 in
Maximum Cutting Height - Long Stick	137 in
Maximum Vertical Dig Depth - Long Stick	71 in
Maximum Horizontal Reach - Standard Stick	143 in
Maximum Horizontal Reach - Long Stick	150 in
Width - Over Track	40 in
Maximum Digging Depth - Long Stick	93 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	83 in
Max Reach Along Ground	143 in
Max Vertical Wall Digging Depth	65 in
Max Loading Height	94 in
Shipping Length of Unit	145 in
Max Cutting Height	132 in
Shipping Height of Unit	86 in

Swing Mechanism specifications
Swing Speed	11 rpm

Boom/Stick Excavator Option 2 specifications
Max Digging Depth	72 in
Max Cutting Height	137 in
Max Loading Height	98 in
Max Vertical Wall Digging Depth	72 in
Max Reach Along Ground	150 in
Shipping Height of Unit	86 in
Shipping Length of Unit	145 in
