CaterpillarCaterpillar
302.5C
Mini Excavator
89 specifications
1 / 5

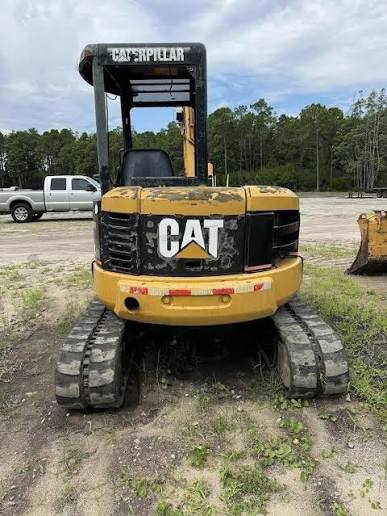

Image 1 of 5
Specifications
41 data points
Engine
| Engine Model | 3013 |
|---|---|
| Displacement | 107 in³ |
| Gross Power | 37.0 hp |
| Net Power | 36.0 hp |
| Stroke | 4 in |
| Bore | 3 in |
Weights
| Operating Weight - With Cab | 9,896 lb |
|---|
Hydraulic System
| Operating Pressure - Equipment | 3,553 psi |
|---|---|
| Operating Pressure - Swing | 2,990 psi |
| Operating Pressure - Travel | 3,550 psi |
| Digging Force - Bucket | 8,228 lb |
| Digging Force - Stick - Standard | 5,373 lb |
| Digging Force - Stick - Long | 4,699 lb |
| Pump - Gear (Tandem) | 11.5 gal/min |
| Auxiliary Circuit - Primary | 22.2 gal/min |
Dimensions
| Track Gauge | 78 in |
|---|---|
| Shipping Length | 204 in |
| Track Shoe Width | 17 in |
| Height - Over Cab | 103 in |
| Maximum Digging Depth - Standard Stick | 132 in |
| Maximum Reach - Ground Level - Standard Stick | 220 in |
| Maximum Dump Height - Standard Stick | 142 in |
| Maximum Vertical Dig Depth - Standard Stick | 113 in |
| Swing Radius - Rear | 40 in |
| Center Ground Clearance | 13 in |
Service Refill Capacities
| Engine Oil | 2.2 gal |
|---|---|
| Hydraulic Tank | 18.0 gal |
| Fuel Tank | 16.0 gal |
| Hydraulic System | 24.0 gal |
| Cooling System TAG | 1.6 gal |
Blades
| Blade Lift Height | 18 in |
|---|---|
| Dig Depth | 17 in |
Electrical System
| Electrical System Type | Twelve-volt system |
|---|
Swing System
| Machine Swing Speed | 9 rpm |
|---|---|
| Boom Swing - Left - Without Stop | 55 ° |
| Boom Swing - Left - With Stop | 80 ° |
| Boom Swing - Right | 50 ° |
| Swing System Type | Hydraulic Motor Driven |
Travel System
| Travel Speed - High | 2.9 mph |
|---|---|
| Travel Speed - Low | 1.6 mph |
| Maximum Traction Force - High Speed | 9,260 lb |
