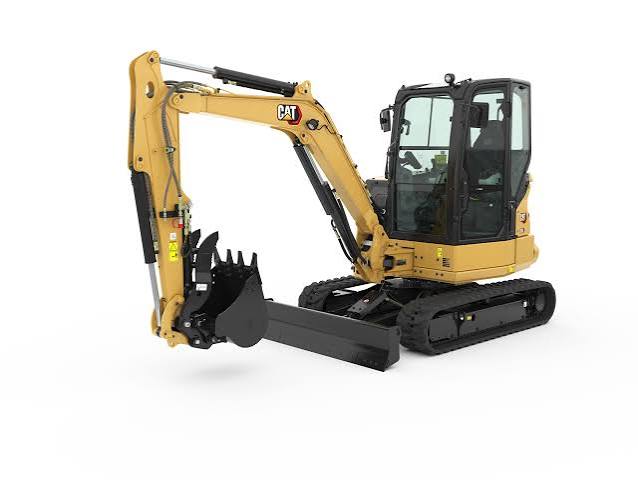

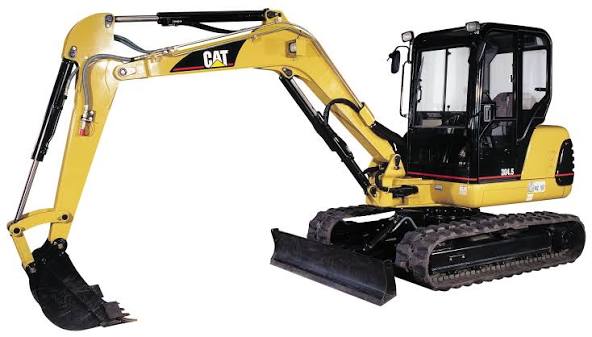

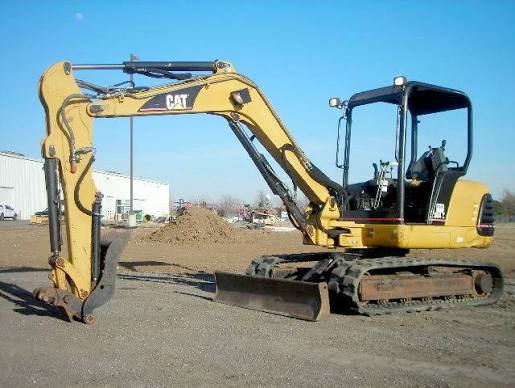

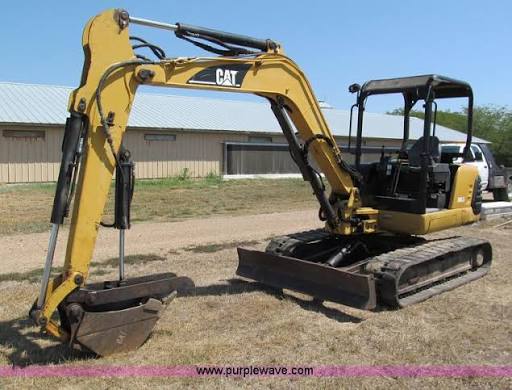

304.5

Specifications

57 data points

Weights specifications
Operating Weight - With Cab	10,130 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,336 psi
Operating Pressure - Swing	2,698 psi
Operating Pressure - Travel	3,336 psi
Digging Force - Bucket	8,880 lb
Digging Force - Stick - Standard	5,171 lb
Digging Force - Stick - Long	4,361 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	23.2 gal/min
Pump - Gear (Tandem)	10.3 gal/min

Dimensions specifications
Track Gauge	60 in
Shipping Length	220 in
Track Shoe Width	17 in
Height - Over Cab	100 in
Maximum Reach - Ground Level - Standard Stick	224 in
Maximum Digging Depth - Standard Stick	141 in
Maximum Dump Height - Standard Stick	158 in
Maximum Vertical Dig Depth - Standard Stick	97 in
Maximum Dump Height - Long Stick	168 in
Maximum Cutting Height - Standard Stick	226 in
Swing Radius - Rear	59 in
Maximum Cutting Height - Long Stick	235 in
Maximum Vertical Dig Depth - Long Stick	121 in
Maximum Horizontal Reach - Standard Stick	229 in
Maximum Horizontal Reach - Long Stick	244 in
Width - Over Track	76 in
Maximum Digging Depth - Long Stick	146 in
Center Ground Clearance	13 in
Width - Upper Structure	52 in
Height - Over Canopy	100 in
Maximum Reach - Ground Level - Long Stick	229 in
Stick Length - Standard Stick	56 in
Stick Length - Long Stick	72 in

Electrical System specifications
Electrical System Type	Twelve-volt system
