8010 CTS
Mini Excavator
34 specifications
1 / 5

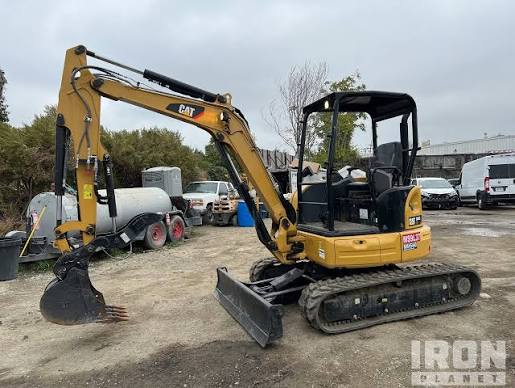

Image 1 of 5
Specifications
67 data points
Engine
| Engine Model | Cat C2.4 |
|---|---|
| Displacement | 146 in³ |
| Bore | 3 in |
| Stroke | 4 in |
| Emissions | *Meets U.S. EPA Tier 4 Final/EU Stage IIIA emission standards. |
Hydraulic System
| Operating Pressure - Equipment | 3,553 psi |
|---|---|
| Operating Pressure - Swing | 3,132 psi |
| Operating Pressure - Travel | 3,553 psi |
| Digging Force - Bucket | 8,498 lb |
| Digging Force - Stick - Standard | 4,856 lb |
| Digging Force - Stick - Long | 4,384 lb |
| Hydraulic System Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
Boom/Stick Excavator Option 1
| Max Digging Depth | 124 in |
|---|---|
| Max Reach Along Ground | 205 in |
General Specifications
| Net Power | 40.20 hp (29.98 kw) Starting 2021 Model Year |
|---|---|
| Operating Weight | 8,930.00 lbs (4,050.58 kg) Starting 2021 Model Year |
| Max Digging Depth | 77.00 ft (23.47 m) Starting 2021 Model Year |
| Engine | C2.4 Starting 2021 Model Year |
Service Refill Capacities
| Engine Oil | 2.5 gal |
|---|---|
| Hydraulic Tank | 11.2 gal |
| Fuel Tank | 12.2 gal |
| Hydraulic System | 17.2 gal |
| Cooling System | 1.5 gal |
Blades
| Blade Width | 77 in |
|---|---|
| Blade Height | 13 in |
| Blade Lift Height | 16 in |
| Dig Depth | 19 in |
Swing System
| Machine Swing Speed | 10 rpm |
|---|---|
| Boom Swing - Left - Without Stop | 70 ° |
| Boom Swing - Left - With Stop | 55 ° |
Travel System
| Travel Speed - High | 3.2 mph |
|---|---|
| Travel Speed - Low | 2.1 mph |
| Maximum Traction Force - High Speed | 3,799 lb |
| Maximum Traction Force - Low Speed | 6,969 lb |
| Gradeability - Maximum | 30 ° |
Dimensions - Long Stick
| Boom In Reach | 87 in |
|---|---|
| Dig Depth | 135 in |
| Maximum Blade Depth | 19 in |
| Maximum Blade Height | 16 in |
| Maximum Dig Height | 200 in |
| Maximum Dump Clearance | 145 in |
| Maximum Reach | 220 in |
| Maximum Reach - Ground Level | 215 in |
| O/A Undercarriage Length | 87 in |
| Swing Bearing - Height | 22 in |
| Track Belt/Shoe Width | 14 in |
| Vertical Wall | 101 in |
| Boom Swing - Left | 26 in |
| Boom Swing - Right | 29 in |
| O/A Shipping Length | 194 in |
| O/A Track Width | 77 in |
Dimensions - Standard Stick
| Boom In Reach | 83 in |
|---|---|
| Dig Depth | 123 in |
| Maximum Blade Depth | 19 in |
| Maximum Blade Height | 16 in |
| Maximum Dig Height | 196 in |
| Maximum Dump Clearance | 141 in |
| Maximum Reach | 211 in |
| Maximum Reach - Ground Level | 206 in |
| O/A Undercarriage Length | 87 in |
| Swing Bearing - Height | 22 in |
| Track Belt/Shoe Width | 14 in |
| Vertical Wall | 95 in |
| Boom Swing - Left | 26 in |
| Boom Swing - Right | 29 in |
| O/A Shipping Length | 190 in |
| O/A Track Width | 77 in |
