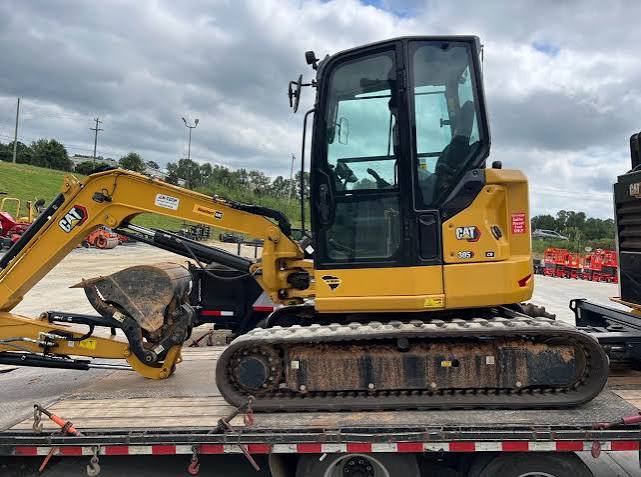

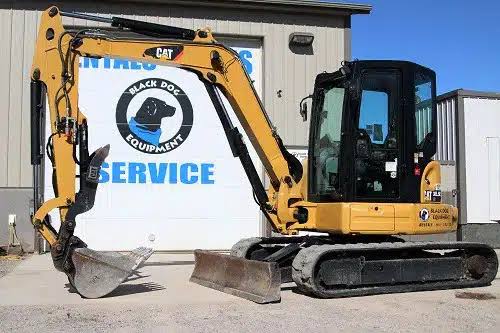

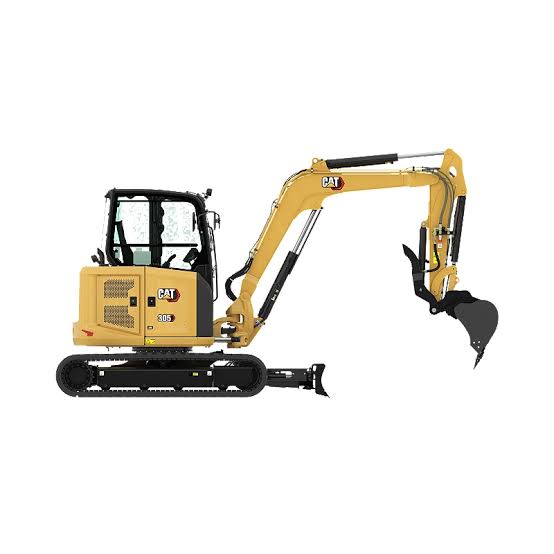

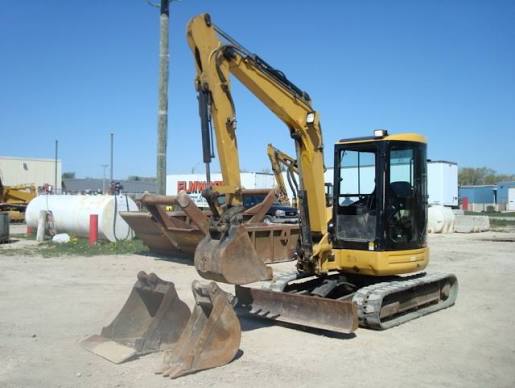

305 CR

Specifications

64 data points

Operating Specifications specifications
Operating Weight	11,001 lb

Weights specifications
Operating Weight - With Cab	11,000 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,550 psi
Operating Pressure - Swing	3,550 psi
Operating Pressure - Travel	3,550 psi
Digging Force - Bucket	9,440 lb
Digging Force - Stick - Standard	6,205 lb
Digging Force - Stick - Long	5,240 lb
Auxiliary Circuit - Primary (245 bar/3,553 psi)	25.0 gal/min
Pump - Gear (Tandem)	13.8 gal/min
Pump - Gear (Single)	11.2 gal/min

Dimensions specifications
Digging Depth	132 in
Digging Reach	132 in
Track Gauge	62 in
Shipping Length	212 in
Track Shoe Width	17 in
Height - Over Cab	103 in
Maximum Digging Depth - Standard Stick	141 in
Maximum Reach - Ground Level - Standard Stick	217 in
Maximum Dump Height - Standard Stick	148 in
Maximum Dump Height - Long Stick	156 in
Swing Radius - Rear	44 in
Maximum Vertical Dig Depth - Standard Stick	108 in
Maximum Cutting Height - Standard Stick	212 in
Maximum Cutting Height - Long Stick	221 in
Maximum Vertical Dig Depth - Long Stick	133 in
Maximum Horizontal Reach - Long Stick	248 in
Maximum Horizontal Reach - Standard Stick	233 in
Width - Over Track	79 in
Maximum Digging Depth - Long Stick	146 in
Center Ground Clearance	25 in
Width - Upper Structure	73 in
Height - Over Canopy	103 in
Maximum Reach - Ground Level - Long Stick	243 in

Electrical System specifications
Electrical System Type	Twelve-volt system
