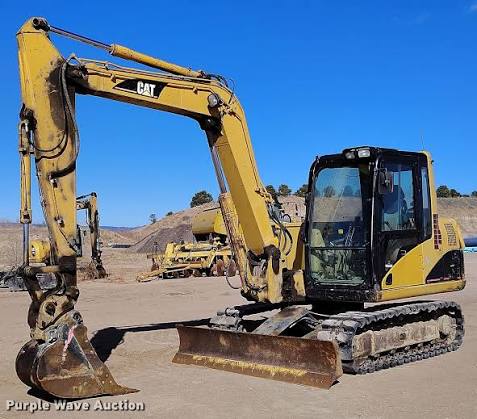

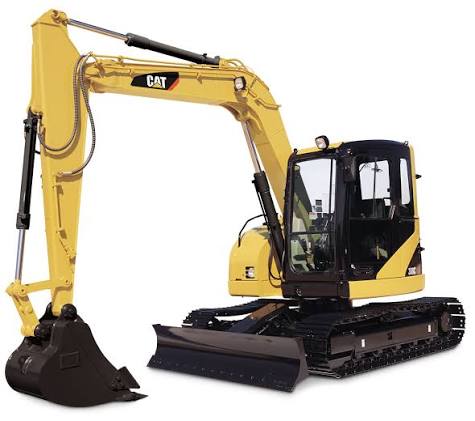

307C

Specifications

83 data points

Operating Specifications specifications
Operating Weight	15,895 lb
Fuel Capacity	35.7 gal
Hydraulic Pump Flow Capacity	17.0 gal/min
Hydraulic System Fluid Capacity	24.9 gal
Hydraulic System Relief Valve Pressure	4,550 psi
Alternator Supplied Amperage	35 A
Engine Oil Capacity	3.0 gal
Cooling System Fluid Capacity	4.1 gal
Swing Drive Fluid Capacity	0.4 gal

Weights specifications
Operating Weight - With Cab	15,895 lb
Operating Weight	15,895 lb

Hydraulic System specifications
Operating Pressure - Equipment	3,980 psi
Operating Pressure - Swing	2,840 psi
Operating Pressure - Travel	4,550 psi
Digging Force - Bucket	9,830 lb
Digging Force - Stick - Standard	7,843 lb
Digging Force - Stick - Long	6,896 lb

Dimensions specifications
Ground Clearance	16 in
Height - Top of Cab	104 in
Tail Swing Radius	70 in
Width to Outside of Tracks	91 in
Transport Width	1,082 in
Digging Depth	180 in
Digging Reach	180 in
Shipping Height	104 in
Shipping Length	240 in
Track Shoe Width	18 in
Maximum Digging Depth - Standard Stick	162 in
Maximum Reach - Ground Level - Standard Stick	245 in
Height - Over Cab	104 in
Maximum Dump Height - Standard Stick	203 in
Maximum Cutting Height - Standard Stick	287 in
Maximum Dump Height - Long Stick	220 in
Maximum Cutting Height - Long Stick	302 in
Maximum Vertical Dig Depth - Standard Stick	143 in
Swing Radius - Rear	70 in
Maximum Vertical Dig Depth - Long Stick	163 in
Length - Center of Rollers	83 in

Boom/Stick Excavator Option 1 specifications
Max Digging Depth	162 in
Max Reach Along Ground	245 in
Max Vertical Wall Digging Depth	144 in
Max Loading Height	203 in
Max Cutting Height	288 in
Shipping Height of Unit	104 in

Swing Mechanism specifications
Swing Speed	11 rpm
Swing Torque	10,440 lb-ft

Boom/Stick Excavator Option 2 specifications
Max Digging Depth	183 in
Max Cutting Height	304 in
Max Loading Height	220 in
Max Vertical Wall Digging Depth	165 in
Max Reach Along Ground	265 in
Shipping Height of Unit	110 in
