Caterpillar

307D

Mini Excavator

Operating Weight
15,598 lb
Max Digging Depth
159 in
Gross Power
57.7 hp
Net Power
55.7 hp
All mini excavators

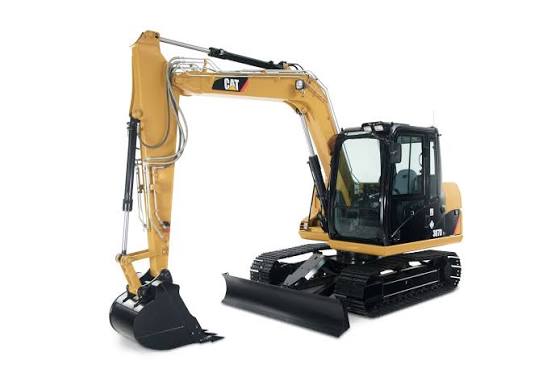

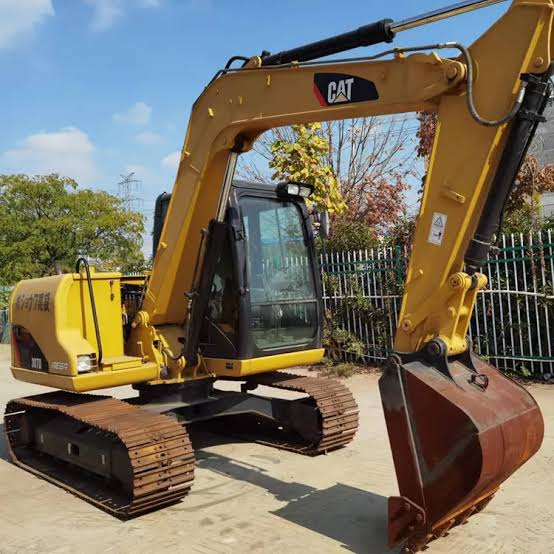

Caterpillar 307D Mini Excavator
1 / 5
Image 1 of 5
Image: swexcavator.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,598 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity71.9 gal/min
Hydraulic System Fluid Capacity24.9 gal
Hydraulic System Relief Valve Pressure4,641 psi
Operating Voltage24 V
Alternator Supplied Amperage35 A
Engine Oil Capacity3.4 gal
Cooling System Fluid Capacity4.2 gal

Engine

Engine specifications
Engine Model4M40 TL
Displacement173 in³
Gross Power57.7 hp
Net Power55.7 hp
Aspirationturbocharged
MakeMitsubishi

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab104 in
Tail Swing Radius70 in
Width to Outside of Tracks91 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Track Gauge73 in
Max Travel Speed1.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth159 in
Max Reach Along Ground243 in
Max Vertical Wall Digging Depth144 in
Max Loading Height205 in
Shipping Length of Unit226 in
Max Cutting Height285 in
Shipping Height of Unit104 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth181 in
Max Cutting Height301 in
Max Loading Height222 in
Max Vertical Wall Digging Depth165 in
Max Reach Along Ground263 in
Shipping Height of Unit104 in
Shipping Length of Unit226 in
