Caterpillar

308D CR

Mini Excavator

Operating Weight
17,300 lb
Max Digging Depth
161 in
Gross Power
57.7 hp
All mini excavators

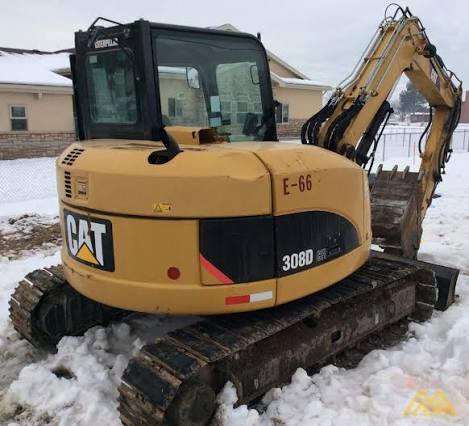

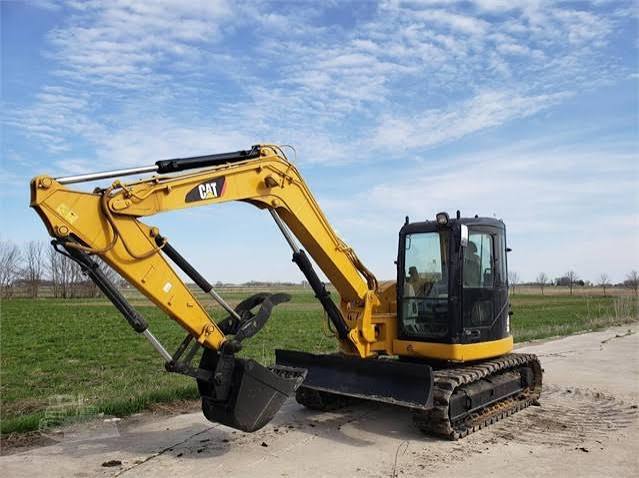

Caterpillar 308D CR Mini Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,300 lb
Fuel Capacity33.1 gal
Hydraulic Pump Flow Capacity71.9 gal/min
Hydraulic System Fluid Capacity24.9 gal
Hydraulic System Relief Valve Pressure4,641 psi
Operating Voltage24 V
Alternator Supplied Amperage35 A
Engine Oil Capacity3.4 gal
Cooling System Fluid Capacity4.2 gal

Engine

Engine specifications
Engine Model4M40 TL
Displacement173 in³
Gross Power57.7 hp
Aspirationturbocharged
MakeMitsubishi

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab102 in
Tail Swing Radius52 in
Width to Outside of Tracks93 in
Removal Counterweight Clearance30 in

Undercarriage

Undercarriage specifications
Track Gauge74 in
Max Travel Speed3.2 mph
Shoe Size18 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth161 in
Max Reach Along Ground244 in
Max Vertical Wall Digging Depth144 in
Max Loading Height210 in
Shipping Length of Unit229 in
Max Cutting Height289 in
Shipping Height of Unit102 in

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth182 in
Max Cutting Height306 in
Max Loading Height226 in
Max Vertical Wall Digging Depth165 in
Max Reach Along Ground265 in
Shipping Height of Unit102 in
Shipping Length of Unit230 in
