Caterpillar
Tata Hitachi
EX70
Excavator
39 specifications
Caterpillar
311C
- Operating Weight
- 26,410 lb
- Max Digging Depth
- 198 in
- Max Digging Depth
- 221 in
- Net Power
- 79.0 hp
1 / 5

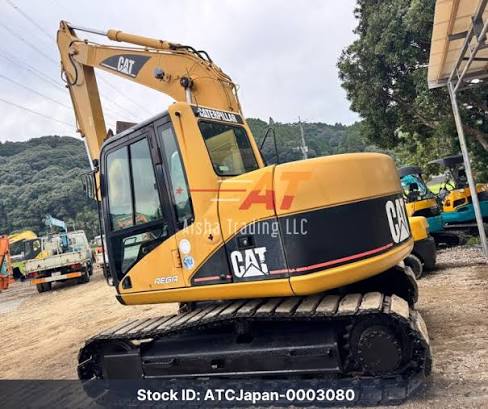

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 26,410 lb |
|---|---|
| Fuel Capacity | 51.5 gal |
| Hydraulic Pump Flow Capacity | 28.0 gal/min |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Hydraulic System Relief Valve Pressure | 4,340 psi |
| Engine Oil Capacity | 5.2 gal |
| Cooling System Fluid Capacity | 4.6 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 3064T |
|---|---|
| Displacement | 259 in³ |
| Gross Power | 82.0 hp |
| Net Power | 79.0 hp |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 109 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 70 in |
| Width to Outside of Tracks | 98 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 78 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 20 in |
| Drawbar Pull | 20,680 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 198 in |
|---|---|
| Max Reach Along Ground | 299 in |
| Max Loading Height | 216 in |
| Max Vertical Wall Digging Depth | 174 in |
| Max Cutting Height | 307 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 109 in |
Bucket
| Reference Bucket Capacity | 0.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 0.99 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 221 in |
|---|---|
| Max Vertical Wall Digging Depth | 194 in |
| Max Cutting Height | 320 in |
| Max Loading Height | 228 in |
| Max Reach Along Ground | 319 in |
| Shipping Length of Unit | 272 in |
| Shipping Height of Unit | 109 in |
