Caterpillar

314D LCR

Excavator

Operating Weight
31,085 lb
Max Digging Depth
215 in
Max Digging Depth
227 in
Net Power
90.0 hp
All excavators

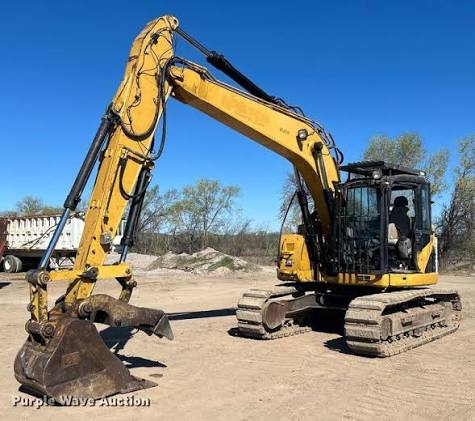

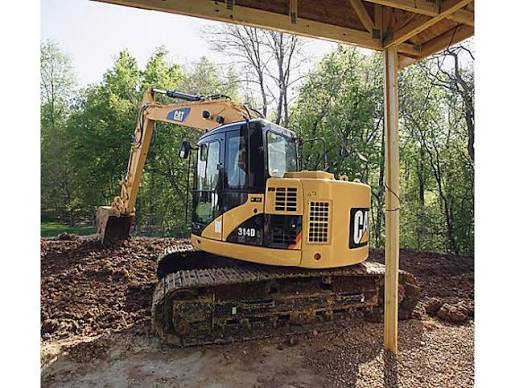

Caterpillar 314D LCR Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight31,085 lb
Fuel Capacity49.2 gal
Hydraulic Pump Flow Capacity5.6 gal/min
Hydraulic System Fluid Capacity42.3 gal
Hydraulic System Relief Valve Pressure5,076 psi
Engine Oil Capacity5.1 gal
Cooling System Fluid Capacity4.8 gal
Swing Drive Fluid Capacity0.8 gal

Engine

Engine specifications
Engine ModelC4.2 ACERT
Displacement259 in³
Gross Power97.0 hp
Net Power90.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Length of Track on Ground120 in
Tail Swing Radius59 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance36 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge79 in
Shoe Size20 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth215 in
Max Reach Along Ground323 in
Max Loading Height271 in
Max Vertical Wall Digging Depth194 in
Max Cutting Height367 in
Shipping Length of Unit287 in
Shipping Height of Unit115 in

Bucket

Bucket specifications
Reference Bucket Capacity0.60 yd³
Maximum Bucket Capacity0.99 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth227 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height373 in
Max Loading Height277 in
Max Reach Along Ground332 in
Shipping Length of Unit292 in
Shipping Height of Unit120 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth234 in
Max Cutting Height379 in
Max Loading Height81 in
Max Vertical Wall Digging Depth209 in
Max Reach Along Ground341 in
Shipping Length of Unit293 in
Shipping Height of Unit115 in
