Caterpillar

318B L

Excavator

Operating Weight
40,521 lb
Max Digging Depth
222 in
Max Digging Depth
239 in
Net Power
119.0 hp
All excavators

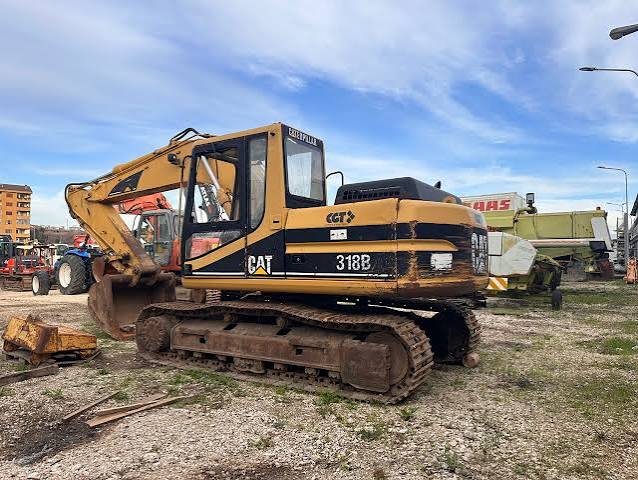

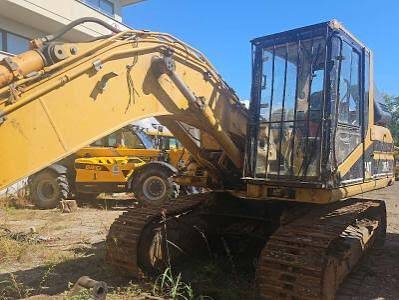

Caterpillar 318B L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

64 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,521 lb
Fuel Capacity74.0 gal
Hydraulic Pump Flow Capacity79.3 gal/min
Hydraulic System Fluid Capacity49.7 gal
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3046T
Displacement305 in³
Net Power119.0 hp
Bore4 in
Stroke5 in
Flywheel Power115.0 hp
ISO 9249115.0 hp
SAE J1349115.0 hp

Weights

Weights specifications
Operating Weight40,543 lb
Operating Weight - Long Undercarriage40,540 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing3,700 psi
Maximum Pressure - Travel4,980 psi
Boom Cylinder - Bore5 in
Boom Cylinder - Stroke47 in
Main Implement System - Maximum Flow (2x)40.0 gal/min
Stick Cylinder - Bore5 in
Stick Cylinder - Stroke54 in
Maximum Pressure - Implements4,980 psi
Bucket Cylinder - Bore4 in
Bucket Cylinder - Stroke41 in

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab119 in
Length of Track on Ground130 in
Tail Swing Radius97 in
Width to Outside of Tracks110 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Track Gauge88 in
Max Travel Speed2.9 mph
Shoe Size24 in
Drawbar Pull39,000 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth222 in
Max Reach Along Ground329 in
Max Loading Height227 in
Max Vertical Wall Digging Depth155 in
Max Cutting Height339 in

Drive System

Drive System specifications
Maximum Drawbar Pull39,000 lb
Travel Speed2.9 mph

Service Refill Capacities

Service Refill Capacities specifications
Cooling System4.6 gal
Hydraulic System - Including Tank49.7 gal
Final Drive - Each0.7 gal
Engine Oil3.4 gal
Hydraulic Tank27.7 gal
Swing Drive - Each0.8 gal
Fuel Tank74.0 gal

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth239 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height355 in
Max Loading Height159 in
Max Reach Along Ground347 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth257 in
Max Cutting Height369 in
Max Loading Height250 in
Max Vertical Wall Digging Depth229 in
Max Reach Along Ground365 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth276 in
Max Cutting Height384 in
Max Reach Along Ground385 in
Max Loading Height265 in
Max Vertical Wall Dig Depth253 in
