Tata Hitachi
EX70
Excavator
39 specifications
1 / 5

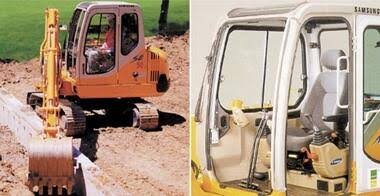

Image 1 of 5
Specifications
33 data points
Operating Specifications
| Operating Weight | 24,538 lb |
|---|---|
| Fuel Capacity | 23.8 gal |
| Hydraulic Pump Flow Capacity | 37.0 gal/min |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Hydraulic System Relief Valve Pressure | 2,990 psi |
| Engine Oil Capacity | 2.7 gal |
| Cooling System Fluid Capacity | 1.4 gal |
| Operating Voltage | 12 V |
| Swing Drive Fluid Capacity | 0.3 gal |
| Alternator Supplied Amperage | 40 A |
Engine
| Engine Model | 4TNE94 |
|---|---|
| Displacement | 170 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 51.0 hp |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 134 lb-ft |
Dimensions
| Height - Top of Cab | 101 in |
|---|---|
| Length of Track on Ground | 78 in |
| Tail Swing Radius | 66 in |
| Width to Outside of Tracks | 74 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Number of Track Rollers per Side | 10 |
| Max Travel Speed | 2.6 mph |
| Shoe Size | 15 in |
| Number of Shoes per Side | 78 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 151 in |
|---|---|
| Max Reach Along Ground | 236 in |
| Max Loading Height | 162 in |
| Max Vertical Wall Digging Depth | 228 in |
| Max Cutting Height | 228 in |
Bucket
| Reference Bucket Capacity | 0.30 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
