Komatsu

PW100-3

Excavator

Operating Weight
24,427 lb
Net Power
108.7 hp
All excavators

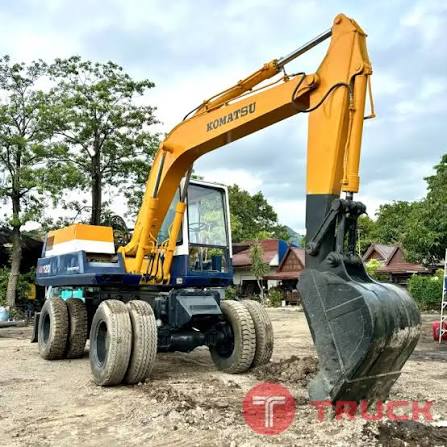

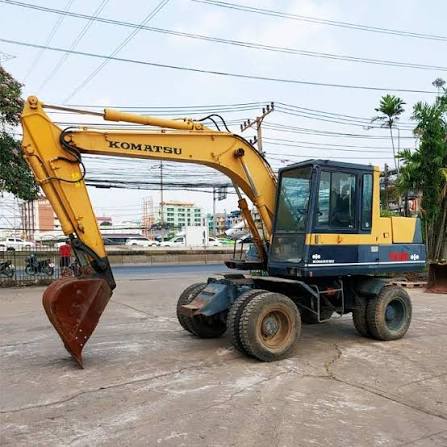

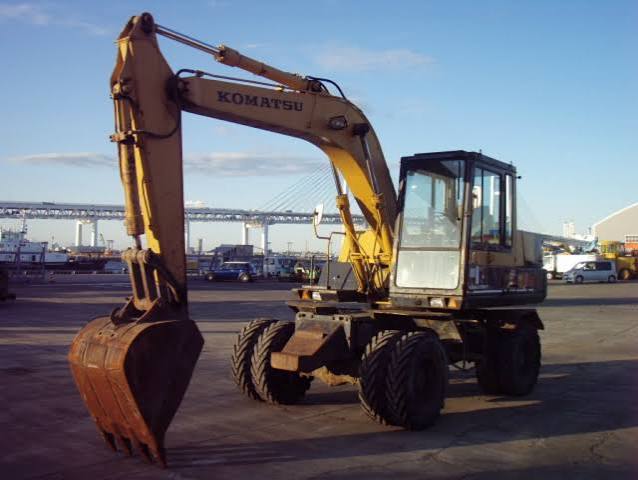

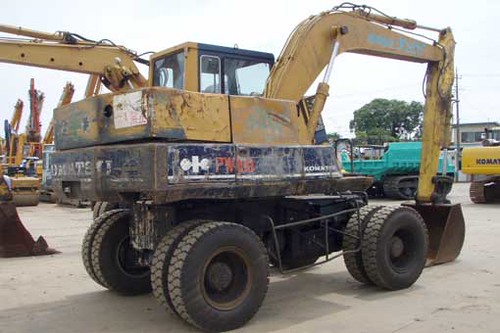

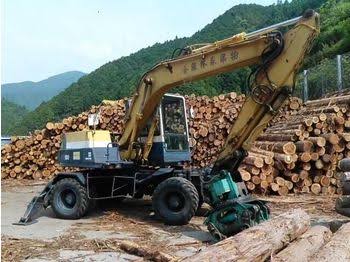

Komatsu PW100-3 Excavator
1 / 5
Image 1 of 5
Image: flickr.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,427 lb
Fuel Capacity55.5 gal
Hydraulic Pump Flow Capacity61.6 gal/min
Hydraulic System Fluid Capacity29.1 gal
Hydraulic System Relief Valve Pressure4,690 psi

Engine

Engine specifications
Engine ModelS6D95L
Displacement299 in³
Power Measured @2,100 rpm
Net Power108.7 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab120 in
Wheelbase103 in
Overall Width8 in
Tail Swing Radius83 in
Upper Structure Clearance48 in

Transmission

Transmission specifications
Max Travel Speed21.5 mph
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth174 in
Max Cutting Height313 in
Max Reach Along Ground284 in
Max Loading Height226 in
Shipping Length of Unit274 in
Shipping Height of Unit144 in
Max Vertical Wall Dig Depth143 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth186 in
Max Cutting Height322 in
Max Reach Along Ground296 in
Max Loading Height231 in
Shipping Height of Unit149 in
Shipping Length of Unit269 in
Max Vertical Wall Dig Depth155 in
