Hitachi

EX60WD-2

Excavator

Operating Weight
14,947 lb
Net Power
66.0 hp
All excavators

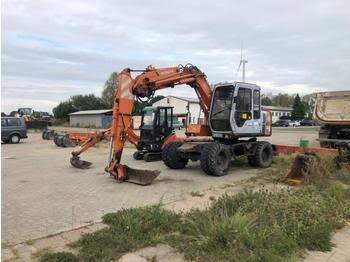

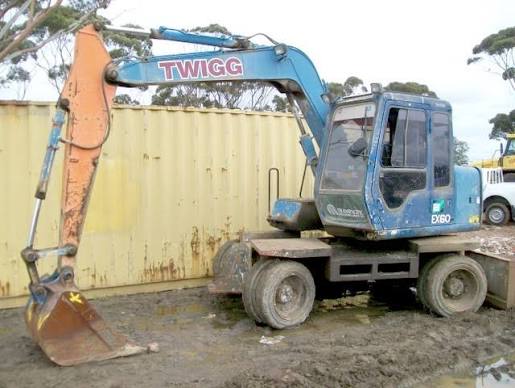

Hitachi EX60WD-2 Excavator
1 / 5
Image 1 of 5
Image: en.55truck.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,947 lb
Fuel Capacity35.7 gal
Hydraulic Pump Flow Capacity35.4 gal/min
Hydraulic System Relief Valve Pressure3,770 psi
Hydraulic Pump Type2 - variable displacement axial piston

Engine

Engine specifications
Engine ModelBD30
Displacement180 in³
Power Measured @2,500 rpm
Net Power66.0 hp
Number of Cylinders4
AspirationNatural

Dimensions

Dimensions specifications
Ground Clearance44 in
Height - Top of Cab102 in
Wheelbase13 in
Overall Width8 in
Tail Swing Radius70 in
Upper Structure Clearance89 in
Overall Width - Outriggers Down126 in

Transmission

Transmission specifications
Max Travel Speed7.2 mph

Bucket

Bucket specifications
Reference Bucket Capacity0.41 yd³
Maximum Bucket Capacity0.50 yd³
Minimum Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed15 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth151 in
Max Cutting Height295 in
Max Reach Along Ground240 in
Max Loading Height214 in
Shipping Length of Unit238 in
Shipping Height of Unit139 in
Max Vertical Wall Dig Depth125 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth170 in
Max Cutting Height311 in
Max Reach Along Ground259 in
Max Loading Height229 in
Shipping Height of Unit139 in
Shipping Length of Unit238 in
Max Vertical Wall Dig Depth148 in
