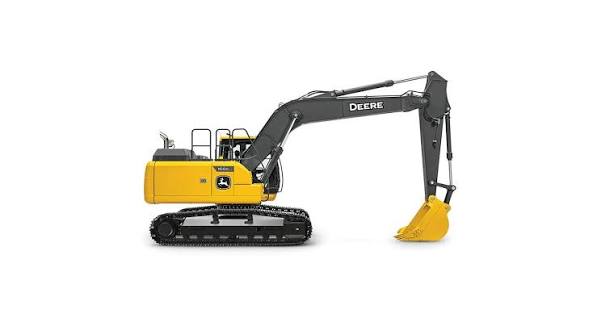

160G LC
Excavator
21 specifications
1 / 5
Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 49,200 lb |
|---|
Engine
| Engine Model | C4.4 ACERT |
|---|---|
| Displacement | 269 in³ |
| Net Power | 161.0 hp |
| Bore | 4 in |
| Stroke | 5 in |
Hydraulic System
| Maximum Pressure - Swing | 3,626 psi |
|---|---|
| Maximum Pressure - Travel | 5,076 psi |
| Pilot System - Maximum Flow | 6.4 gal/min |
| Pilot System - Maximum Pressure | 569 psi |
| Main System - Maximum Flow (total) | 113.0 gal/min |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Reach Along Ground | 388 in |
Drive System
| Maximum Drawbar Pull | 46,086 lb |
|---|---|
| Maximum Travel Speed | 3.5 mph |
Service Refill Capacities
| Cooling System | 7.9 gal |
|---|---|
| Hydraulic System - Including Tank | 68.7 gal |
| Final Drive - Each | 2.1 gal |
| Engine Oil | 6.6 gal |
| Hydraulic Tank | 42.0 gal |
| Fuel Tank Capacity | 108.0 gal |
| Swing Drive | 2.1 gal |
Swing
| Swing Speed | 11 rpm |
|---|---|
| Swing Torque | 45,580 lb-ft |
