John Deere

160G LC

Excavator

Operating Weight
29,526 lb
Max Digging Depth
257 in
Net Power
122.0 hp
All excavators

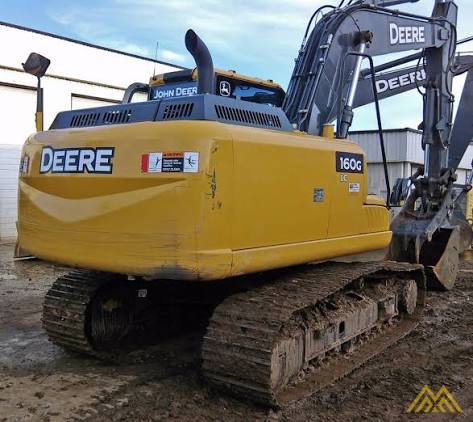

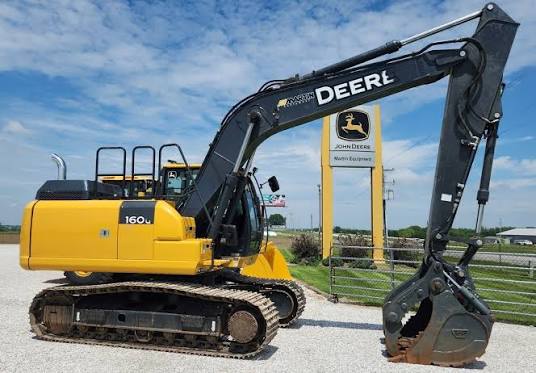

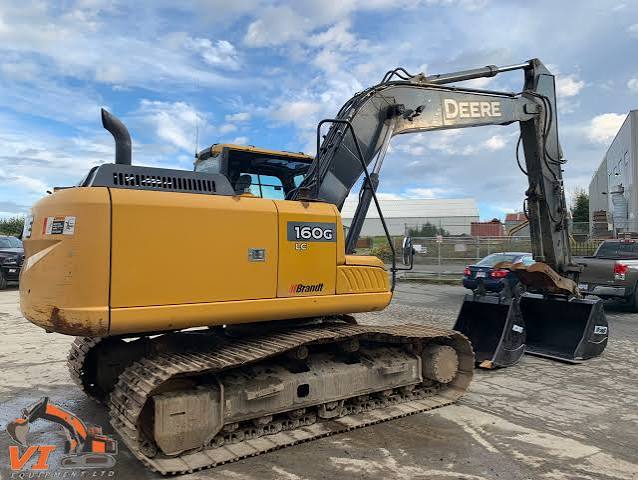

John Deere 160G LC Excavator
1 / 5
Image 1 of 5
Image: jesco.us

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,526 lb
Fuel Capacity75.3 gal
Hydraulic System Fluid Capacity33.0 gal
Engine Oil Capacity4.5 gal
Cooling System Fluid Capacity6.3 gal
Swing Drive Fluid Capacity1.7 gal

Engine

Engine specifications
Engine ModelPowerTech PWS 4.5 L
Displacement275 in³
Net Power122.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab117 in
Tail Swing Radius115 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side7
Max Travel Speed3.3 mph
Number of Shoes per Side43
Number of Carrier Rollers per Side2
Drawbar Pull35,521 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth257 in
Max Reach Along Ground369 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm
