Caterpillar

325D L

Excavator

Operating Weight
64,460 lb
Max Digging Depth
308 in
Max Digging Depth
288 in
Net Power
190.0 hp
All excavators

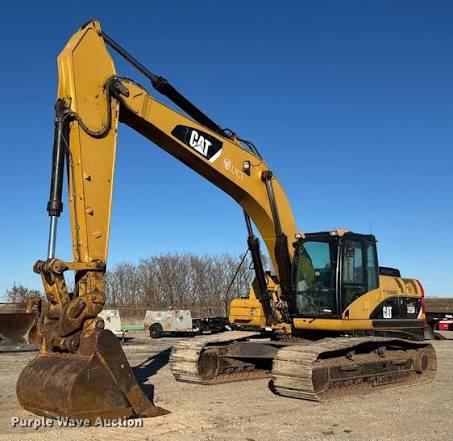

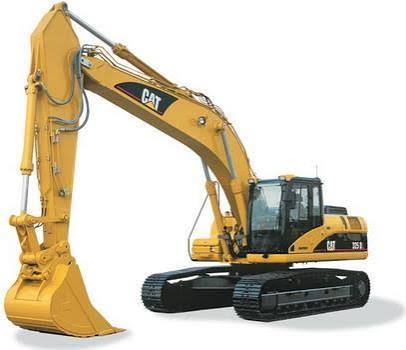

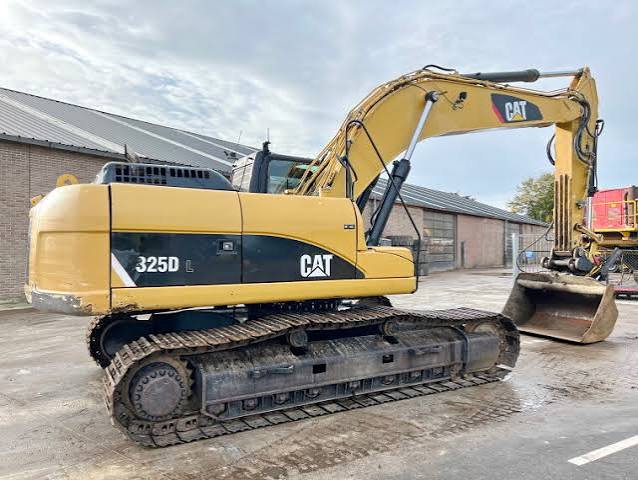

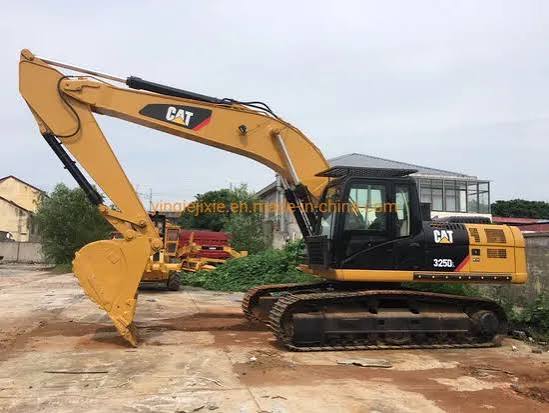

Caterpillar 325D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

96 data points

Operating Specifications

Operating Specifications specifications
Operating Weight64,460 lb
Fuel Capacity137.0 gal
Hydraulic Pump Flow Capacity124.2 gal/min
Hydraulic System Fluid Capacity82.0 gal
Hydraulic System Relief Valve Pressure5,221 psi
Engine Oil Capacity7.9 gal
Cooling System Fluid Capacity7.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity2.6 gal
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine ModelCat C7 ACERT
Displacement440 in³
Power Measured @1,800 rpm
Net Power190.0 hp
Bore4 in
Stroke5 in
Net Power - ISO 9249204.0 hp
Net Power - SAE J1349202.0 hp
Net Power - EEC 80/1269204.0 hp

Weights

Weights specifications
Operating Weight64,460 lb
Operating Weight - Standard Undercarriage64,460 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing3,989 psi
Maximum Pressure - Travel5,076 psi
Boom Cylinder - Bore6 in
Boom Cylinder - Stroke55 in
Main Implement System - Maximum Flow (2x)62.0 gal/min
Maximum Pressure - Equipment5,076 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab120 in
Tail Swing Radius121 in
Width to Outside of Tracks133 in
Removal Counterweight Clearance44 in
Transport Width134 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.3 mph
Shoe Size32 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2
Drawbar Pull55,977 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth308 in
Max Reach Along Ground439 in
Max Loading Height281 in
Max Vertical Wall Digging Depth259 in
Max Cutting Height406 in
Shipping Length of Unit410 in
Shipping Height of Unit144 in

Bucket

Bucket specifications
Reference Bucket Capacity1.80 yd³
Maximum Bucket Capacity2.60 yd³

Drive System

Drive System specifications
Maximum Drawbar Pull55,977 lb

Service Refill Capacities

Service Refill Capacities specifications
Cooling System7.9 gal
Hydraulic System - Including Tank82.0 gal
Final Drive - Each1.6 gal
Engine Oil7.9 gal
Fuel Tank Capacity137.0 gal
Swing Drive2.6 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth288 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height398 in
Max Loading Height272 in
Max Reach Along Ground420 in
Shipping Length of Unit410 in
Shipping Height of Unit126 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth265 in
Max Cutting Height395 in
Max Loading Height267 in
Max Vertical Wall Digging Depth229 in
Max Reach Along Ground402 in
Shipping Length of Unit410 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth265 in
Max Cutting Height381 in
Max Reach Along Ground396 in
Max Loading Height256 in
Max Vertical Wall Dig Depth222 in
Shipping Length of Unit386 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB88 ISO 10262

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth241 in
Max Reach Along Ground372 in
Max Cutting Height364 in
Max Loading Height235 in
Max Vertical Wall Dig Depth199 in
Shipping Height of Unit128 in
Shipping Length of Unit388 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth576 in
Max Reach Along Ground732 in
Max Cutting Height584 in
Max Loading Height502 in
Max Vertical Wall Dig Depth552 in
Shipping Length of Unit567 in
Shipping Height of Unit127 in

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage50
Number of Track Rollers - Each Side - Long Undercarriage9
Number of Carrier Rollers - Each Side - Long Undercarriage2
Standard with Long Undercarriage32 in
