Caterpillar
330B
- Operating Weight
- 71,474 lb
- Max Digging Depth
- 319 in
- Max Digging Depth
- 295 in
- Net Power
- 222.0 hp
1 / 5

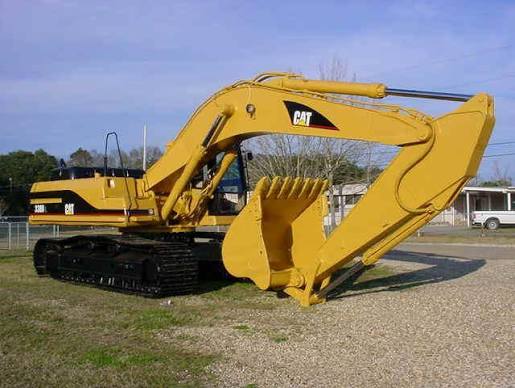

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 71,474 lb |
|---|---|
| Fuel Capacity | 148.0 gal |
| Hydraulic Pump Flow Capacity | 126.9 gal/min |
| Hydraulic System Fluid Capacity | 105.7 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 8.0 gal |
| Cooling System Fluid Capacity | 11.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 4.0 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | 3306TA |
|---|---|
| Displacement | 641 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 236.0 hp |
| Net Power | 222.0 hp |
| Aspiration | Turbocharged and Aftercooled |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 125 in |
| Length of Track on Ground | 143 in |
| Tail Swing Radius | 138 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 50 in |
Undercarriage
| Track Gauge | 102 in |
|---|---|
| Max Travel Speed | 2.9 mph |
| Shoe Size | 24 in |
| Drawbar Pull | 60,250 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 319 in |
|---|---|
| Max Reach Along Ground | 458 in |
| Max Loading Height | 300 in |
| Max Vertical Wall Digging Depth | 285 in |
| Max Cutting Height | 425 in |
| Shipping Length of Unit | 437 in |
| Shipping Height of Unit | 143 in |
Boom/Stick Excavator Option 2
| Max Digging Depth | 295 in |
|---|---|
| Max Vertical Wall Digging Depth | 258 in |
| Max Cutting Height | 411 in |
| Max Loading Height | 288 in |
| Max Reach Along Ground | 434 in |
| Shipping Length of Unit | 434 in |
| Shipping Height of Unit | 130 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 260 in |
|---|---|
| Max Cutting Height | 401 in |
| Max Loading Height | 264 in |
| Max Vertical Wall Digging Depth | 233 in |
| Max Reach Along Ground | 402 in |
| Shipping Length of Unit | 425 in |
| Shipping Height of Unit | 141 in |
