Sumitomo

SH200LC

Excavator

Operating Weight
42,968 lb
Max Digging Depth
241 in
Max Digging Depth
264 in
Net Power
128.0 hp
All excavators

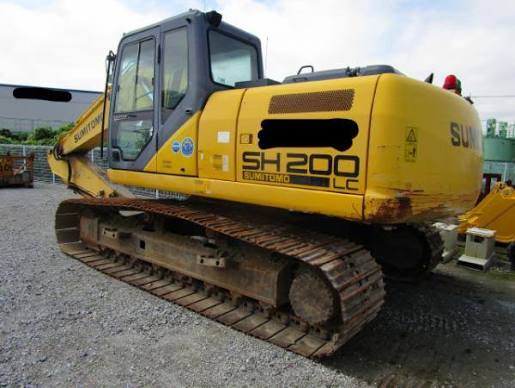

Sumitomo SH200LC Excavator
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,968 lb
Fuel Capacity81.9 gal
Hydraulic System Fluid Capacity58.2 gal
Hydraulic System Relief Valve Pressure4,550 psi

Engine

Engine specifications
Engine Model6BD1T
Displacement353 in³
Power Measured @2,020 rpm
Net Power128.0 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab113 in
Length of Track on Ground145 in
Tail Swing Radius109 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge95 in
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth241 in
Max Reach Along Ground372 in
Max Loading Height254 in
Max Vertical Wall Digging Depth216 in
Max Cutting Height365 in
Shipping Length of Unit372 in
Shipping Height of Unit113 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed12 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth264 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height373 in
Max Loading Height263 in
Max Reach Along Ground393 in
Shipping Length of Unit372 in
Shipping Height of Unit113 in
