Caterpillar

330B LN

Excavator

Operating Weight
74,362 lb
Max Digging Depth
318 in
Max Digging Depth
294 in
Net Power
222.0 hp
All excavators

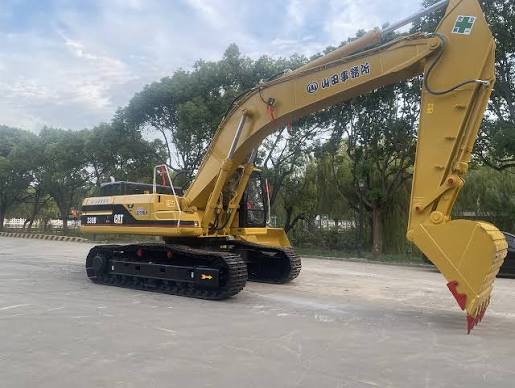

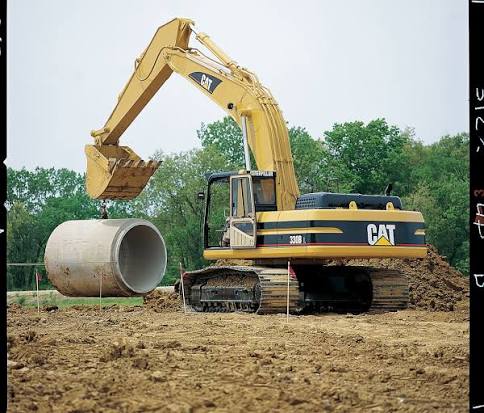

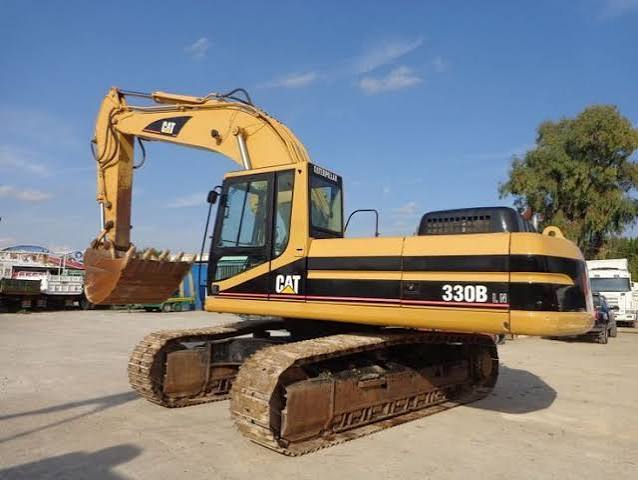

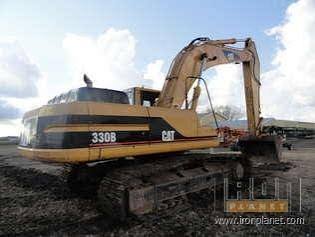

Caterpillar 330B LN Excavator
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Operating Weight74,362 lb
Fuel Capacity148.0 gal
Hydraulic Pump Flow Capacity126.9 gal/min
Hydraulic System Relief Valve Pressure4,980 psi

Engine

Engine specifications
Engine Model3306TA
Displacement641 in³
Net Power222.0 hp

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab128 in
Length of Track on Ground159 in
Tail Swing Radius138 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Max Travel Speed2.9 mph
Shoe Size24 in
Drawbar Pull60,250 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth318 in
Max Reach Along Ground458 in
Max Loading Height301 in
Max Vertical Wall Digging Depth238 in
Max Cutting Height424 in
Shipping Length of Unit439 in
Shipping Height of Unit141 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth294 in
Max Vertical Wall Digging Depth211 in
Max Cutting Height410 in
Max Loading Height288 in
Max Reach Along Ground434 in
Shipping Length of Unit439 in
Shipping Height of Unit141 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth275 in
Max Cutting Height403 in
Max Loading Height281 in
Max Vertical Wall Digging Depth197 in
Max Reach Along Ground417 in
Shipping Length of Unit439 in
Shipping Height of Unit141 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth253 in
Max Cutting Height391 in
Max Reach Along Ground395 in
Max Loading Height260 in
Max Vertical Wall Dig Depth191 in
Shipping Length of Unit439 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth257 in
Max Reach Along Ground400 in
Max Cutting Height401 in
Max Loading Height267 in
Max Vertical Wall Dig Depth212 in
Shipping Height of Unit142 in
Shipping Length of Unit426 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth241 in
Max Reach Along Ground380 in
Max Cutting Height380 in
Max Loading Height251 in
Max Vertical Wall Dig Depth173 in
Shipping Length of Unit426 in
Shipping Height of Unit142 in

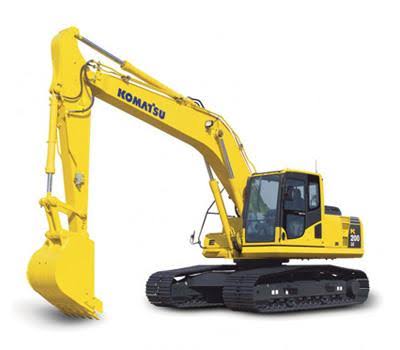

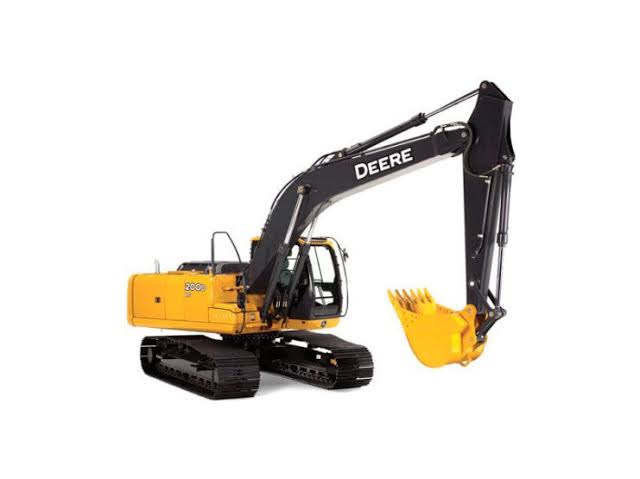

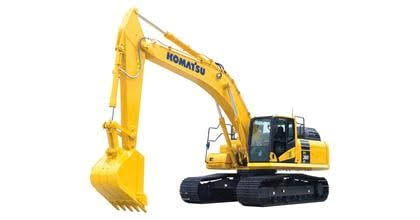

Comparable machines
