John Deere

200 LC

Excavator

Operating Weight
44,750 lb
Max Digging Depth
235 in
Max Digging Depth
264 in
Net Power
140.0 hp
All excavators

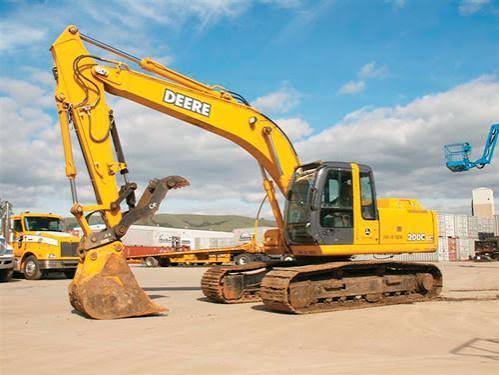

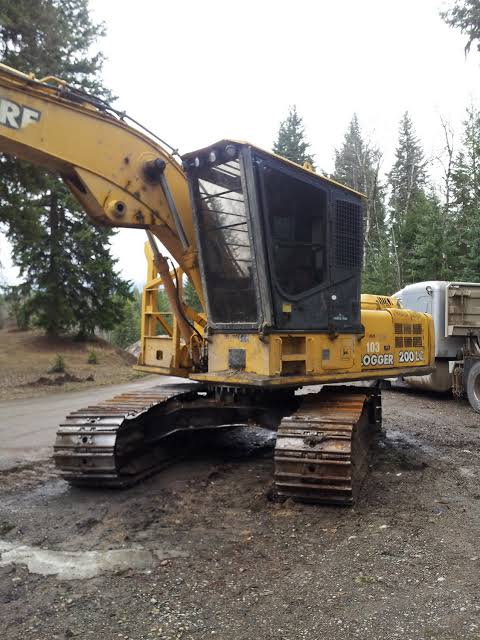

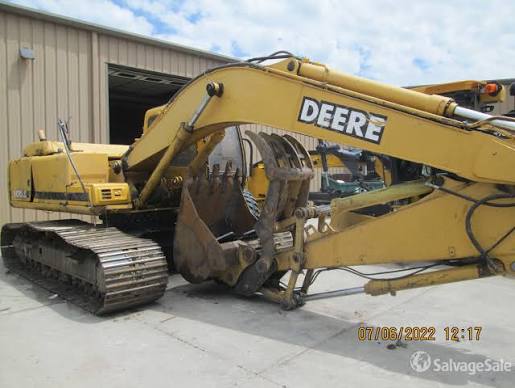

John Deere 200 LC Excavator
1 / 5
Image 1 of 5
Image: rent1usa.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,750 lb
Fuel Capacity80.0 gal
Hydraulic Pump Flow Capacity52.6 gal/min
Hydraulic System Fluid Capacity52.8 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity5.1 gal
Cooling System Fluid Capacity7.6 gal
Operating Voltage24 V
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6068T
Displacement414 in³
Power Measured @2,150 rpm
Net Power140.0 hp
AspirationTurbocharger
Torque Measured @1,300 rpm
Max Torque427 lb-ft

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab107 in
Length of Track on Ground145 in
Tail Swing Radius107 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance41 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed3.2 mph
Shoe Size32 in
Number of Shoes per Side49
Number of Carrier Rollers per Side2
Drawbar Pull42,420 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground357 in
Max Loading Height252 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height361 in
Shipping Length of Unit379 in
Shipping Height of Unit122 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth264 in
Max Vertical Wall Digging Depth239 in
Max Cutting Height378 in
Max Loading Height268 in
Max Reach Along Ground384 in
Shipping Length of Unit374 in
Shipping Height of Unit118 in
