Komatsu

PC200LC-2

Excavator

Operating Weight
44,754 lb
Max Digging Depth
235 in
Max Digging Depth
256 in
Net Power
105.0 hp
All excavators

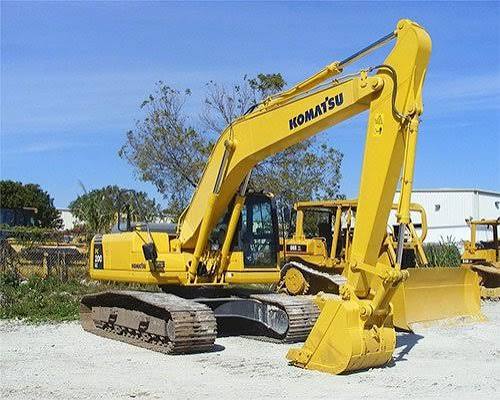

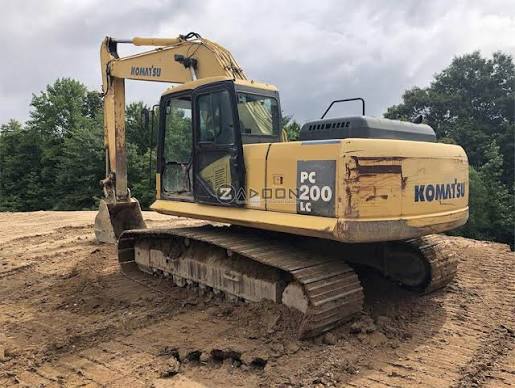

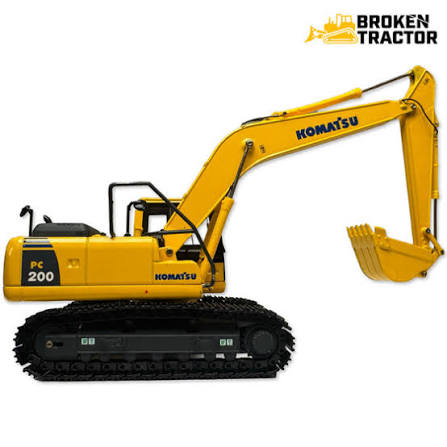

Komatsu PC200LC-2 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight44,754 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity116.8 gal/min
Hydraulic System Fluid Capacity47.6 gal
Hydraulic System Relief Valve Pressure3,980 psi

Engine

Engine specifications
Engine Model6D105
Displacement396 in³
Net Power105.0 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab117 in
Length of Track on Ground144 in
Tail Swing Radius107 in
Width to Outside of Tracks122 in
Removal Counterweight Clearance40 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge95 in
Max Travel Speed2.2 mph
Shoe Size28 in
Drawbar Pull34,598 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth235 in
Max Reach Along Ground359 in
Max Loading Height234 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height339 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed13 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth256 in
Max Vertical Wall Digging Depth230 in
Max Cutting Height355 in
Max Loading Height248 in
Max Reach Along Ground380 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth300 in
Max Cutting Height370 in
Max Loading Height263 in
Max Vertical Wall Digging Depth272 in
Max Reach Along Ground422 in
