Caterpillar

330C

Excavator

Operating Weight
93,586 lb
Max Digging Depth
245 in
Net Power
243.0 hp
All excavators

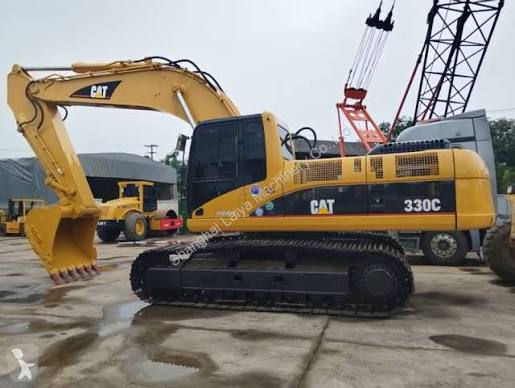

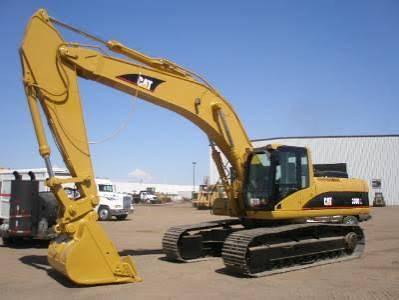

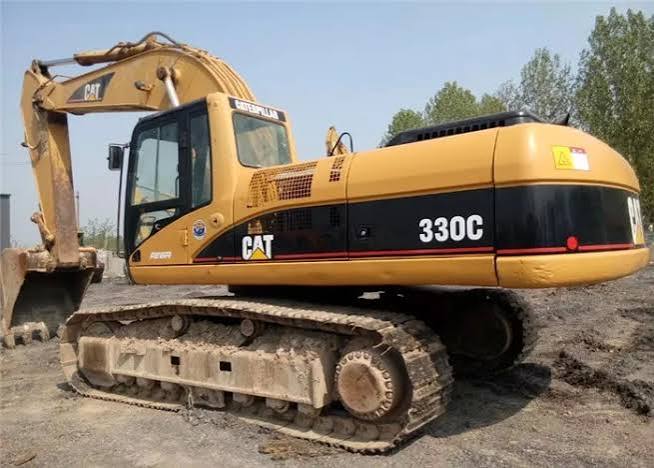

Caterpillar 330C Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight93,586 lb
Hydraulic Pump Flow Capacity9.8 gal/min
Hydraulic System Relief Valve Pressure598 psi
Operating Voltage12 V
Alternator Supplied Amperage7 A

Engine

Engine specifications
Engine ModelC9 ATAAC
Displacement537 in³
Power Measured @1,800 rpm
Net Power243.0 hp
Aspirationturbocharged

Dimensions

Dimensions specifications
Ground Clearance29 in
Length of Track on Ground212 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side9
Max Travel Speed2.3 mph
Shoe Size30 in
Number of Shoes per Side52
Number of Carrier Rollers per Side3
Drawbar Pull74,412 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth245 in
Max Reach Along Ground394 in
Max Loading Height251 in
Max Vertical Wall Digging Depth170 in
Max Cutting Height401 in

Bucket

Bucket specifications
Reference Bucket Capacity3.10 yd³
Maximum Bucket Capacity3.10 yd³
Minimum Bucket Capacity2.30 yd³
