Liugong

CLG925LC

Excavator

Operating Weight
56,218 lb
Max Digging Depth
275 in
Net Power
167.7 hp
All excavators

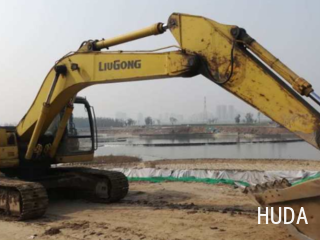

Liugong CLG925LC Excavator
1 / 5
Image 1 of 5
Image: hudamachinery.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,218 lb
Hydraulic Pump Flow Capacity120.0 gal/min
Hydraulic System Relief Valve Pressure442 psi

Engine

Engine specifications
Engine Model6BTA5.9
Displacement360 in³
Power Measured @2,100 rpm
Net Power167.7 hp

Dimensions

Dimensions specifications
Ground Clearance18 in
Length of Track on Ground151 in
Tail Swing Radius119 in
Width to Outside of Tracks126 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.5 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth275 in
Max Reach Along Ground409 in
Max Loading Height284 in
Max Vertical Wall Digging Depth248 in
Shipping Length of Unit393 in
Shipping Height of Unit120 in

Bucket

Bucket specifications
Reference Bucket Capacity1.40 yd³
