Liebherr

A924C

Excavator

Operating Weight
56,400 lb
Net Power
184.0 hp
All excavators
Liebherr A924C Excavator
1 / 5
Image 1 of 5

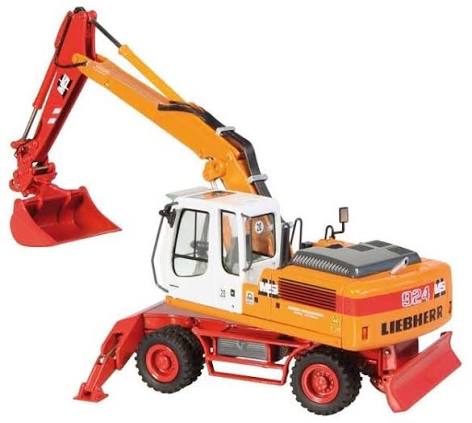

Image: constructionscalemodels.com

Specifications

75 data points

Operating Specifications

Operating Specifications specifications
Operating Weight56,400 lb
Operating Weight w/o Attachment46,100 lb
Fuel Capacity105.7 gal
Hydraulic Pump Flow Capacity56.8 gal/min
Hydraulic System Fluid Capacity113.6 gal
Hydraulic System Relief Valve Pressure5,076 psi
Alternator Supplied Amperage80 A
Tire Size11.00-20

Engine

Engine specifications
Engine ModelD 934 L
Displacement427 in³
Power Measured @1,800 rpm
Gross Power184.0 hp
Net Power184.0 hp
Number of Cylinders4
Aspirationturbo-charged and after-cooled reduced emissions

Hydraulic System

Hydraulic System specifications
Pump TypeLiebherr variable displacement swash plate double pump
Pump Capacity56.8 gal/min

Dimensions

Dimensions specifications
Wheelbase109 in
Overall Width9 in
Upper Structure Clearance52 in
Shipping Height130 in
Shipping Length401 in
Overall Width - Outriggers Down168 in
Undercarriage Width109 in
Upperstructure Clearance54 in

Transmission

Transmission specifications
Max Speed12.5 mph
Max Travel Speed12.5 mph
Transmission Typeoversized two speed power shift transmission with additional creeper speed

Bucket

Bucket specifications
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.50 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth235 in
Max Cutting Height420 in
Max Reach Along Ground373 in
Max Loading Height296 in
Shipping Length of Unit378 in
Shipping Height of Unit127 in
Max Vertical Wall Dig Depth170 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth243 in
Max Cutting Height427 in
Max Reach Along Ground380 in
Max Loading Height301 in
Shipping Height of Unit127 in
Shipping Length of Unit378 in
Max Vertical Wall Dig Depth174 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth251 in
Max Cutting Height433 in
Max Reach Along Ground389 in
Max Loading Height307 in
Shipping Height of Unit127 in
Shipping Length of Unit378 in
Max Vertical Wall Dig Depth178 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth267 in
Max Cutting Height444 in
Max Reach Along Ground402 in
Max Loading Height318 in
Shipping Height of Unit127 in
Shipping Length of Unit378 in
Max Vertical Wall Dig Depth193 in

Boom/Stick Mat. Handler Option 1

Boom/Stick Mat. Handler Option 1 specifications
Boom/Stick Option (MAT) 16.8m boom / 5m stick
Max Depth131 in
Max Height512 in
Max Reach Along Ground454 in

Boom/Stick Mat. Handler Option 2

Boom/Stick Mat. Handler Option 2 specifications
Boom/Stick Option (MAT) 26.8m boom / 6m stick
Max Depth170 in
Max Height552 in
Max Reach Along Ground493 in

Boom/Stick Mat. Handler Option 3

Boom/Stick Mat. Handler Option 3 specifications
Boom/Stick Option (MAT) 36.8m boom / 5m stick and grapple model 65
Max Depth236 in
Max Height433 in
Max Reach Along Ground500 in

Wheel Undercarriage

Wheel Undercarriage specifications
Wheelbase110 in
Width w/ Stabilizers on Ground168 in
Tire Size11 – 20
Steering Angle30 °
