Caterpillar

345D L

Excavator

Max Digging Depth
336 in
Net Power
380.0 hp
All excavators

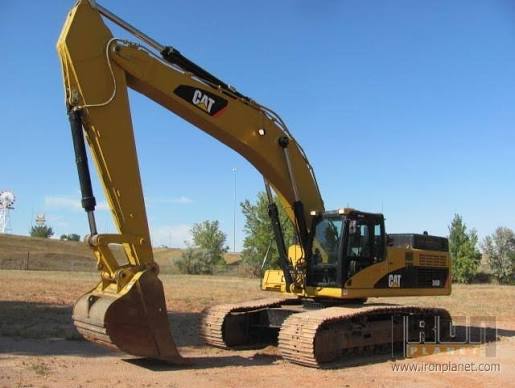

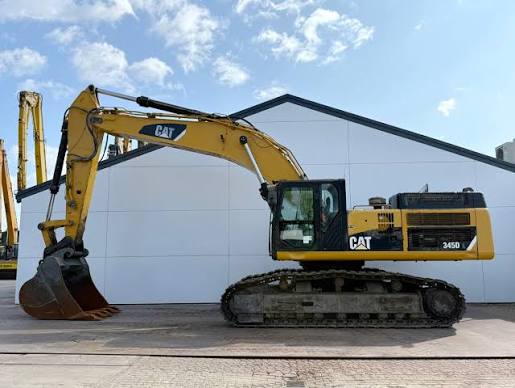

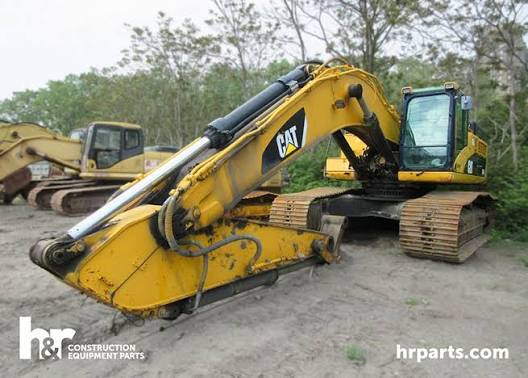

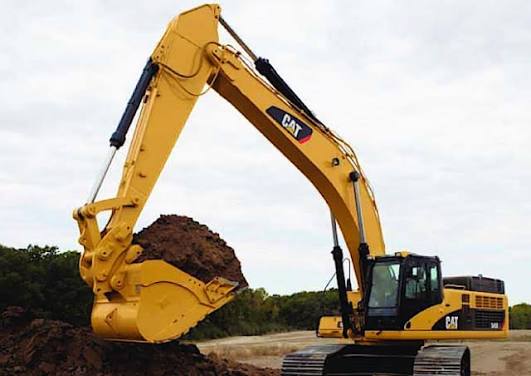

Caterpillar 345D L Excavator
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

85 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity186.0 gal
Hydraulic Pump Flow Capacity194.0 gal/min
Hydraulic System Fluid Capacity150.0 gal
Hydraulic System Relief Valve Pressure5,080 psi
Engine Oil Capacity11.0 gal
Cooling System Fluid Capacity9.4 gal
Swing Drive Fluid Capacity2.6 gal
Maximum Digging Depth352 in
Maximum Bucket Capacity5.00 yd³

Engine

Engine specifications
Engine ModelCat C13 ACERT
Displacement763 in³
Net Power380.0 hp
Bore5 in
Stroke6 in
Net Power - ISO 9249380.0 hp
Net Power - SAE J1349380.0 hp
Net Power - EEC 80/1269380.0 hp

Weights

Weights specifications
Operating Weight100,040 lb
Operating Weight - Long Undercarriage100,040 lb

Hydraulic System

Hydraulic System specifications
Maximum Pressure - Swing4,550 psi
Maximum Pressure - Travel5,080 psi
Boom Cylinder - Bore6 in
Boom Cylinder - Stroke62 in
Stick Cylinder - Bore8 in
Pilot System - Maximum Flow11.0 gal/min
Maximum Pressure - Equipment - Normal5,080 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground173 in
Tail Swing Radius149 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance53 in

Undercarriage

Undercarriage specifications
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed2.8 mph
Shoe Size30 in
Number of Shoes per Side52
Number of Carrier Rollers per Side2
Drawbar Pull75,920 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Loading Height311 in
Max Vertical Wall Digging Depth231 in
Shipping Length of Unit491 in
Shipping Height of Unit145 in

Bucket

Bucket specifications
Reference Bucket Capacity2.39 yd³
Maximum Bucket Capacity4.60 yd³

Service Refill Capacities

Service Refill Capacities specifications
Cooling System9.4 gal
Hydraulic System - Including Tank150.0 gal
Final Drive - Each4.0 gal
Engine Oil11.0 gal
Hydraulic Tank64.0 gal
Fuel Tank Capacity186.0 gal
Swing Drive - Each2.6 gal

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth336 in
Max Vertical Wall Digging Depth210 in
Max Loading Height306 in
Max Reach Along Ground496 in
Shipping Length of Unit490 in
Shipping Height of Unit141 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth324 in
Max Loading Height293 in
Max Vertical Wall Digging Depth209 in
Max Reach Along Ground478 in
Shipping Length of Unit470 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth301 in
Max Reach Along Ground462 in
Max Loading Height293 in
Max Vertical Wall Dig Depth205 in
Shipping Length of Unit470 in

Standards

Standards specifications
BrakesSAE J1026 APR90
Cab/FOGSSAE J1356 FEB 88 and ISO 10262-1998

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth283 in
Max Reach Along Ground439 in
Max Loading Height270 in
Max Vertical Wall Dig Depth183 in
Shipping Height of Unit158 in
Shipping Length of Unit458 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth264 in
Max Reach Along Ground421 in
Max Loading Height261 in
Max Vertical Wall Dig Depth167 in
Shipping Length of Unit462 in
Shipping Height of Unit156 in

Track

Track specifications
Number of Shoes - Each Side - Long Undercarriage52
Number of Track Rollers - Each Side - Long Undercarriage9
