New Holland

E265LC

Excavator

Operating Weight
60,142 lb
Max Digging Depth
244 in
Max Digging Depth
257 in
Net Power
186.0 hp
All excavators

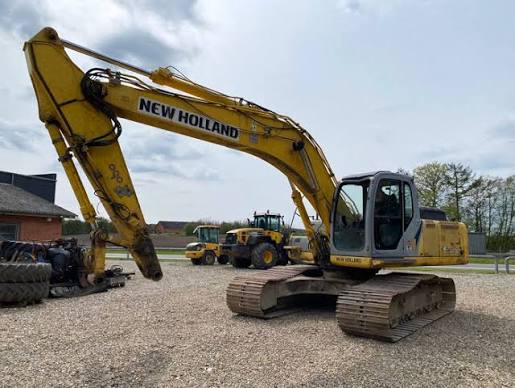

New Holland E265LC Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

58 data points

Operating Specifications

Operating Specifications specifications
Operating Weight60,142 lb
Fuel Capacity118.1 gal
Hydraulic Pump Flow Capacity124.2 gal/min
Hydraulic System Fluid Capacity74.0 gal
Hydraulic System Relief Valve Pressure497,438,843 psi
Engine Oil Capacity4.5 gal
Cooling System Fluid Capacity6.1 gal
Operating Voltage24 V
Alternator Supplied Amperage70 A

Engine

Engine specifications
Engine ModelCNH 667TA/EEG
Displacement409 in³
Power Measured @2,100 rpm
Net Power186.0 hp
Torque Measured @1,400 rpm
Max Torque590 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab121 in
Length of Track on Ground152 in
Tail Swing Radius117 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.8 mph
Shoe Size24 in
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth244 in
Max Reach Along Ground373 in
Max Loading Height270 in
Max Vertical Wall Digging Depth235 in
Max Cutting Height378 in
Shipping Length of Unit403 in
Shipping Height of Unit127 in

Bucket

Bucket specifications
Reference Bucket Capacity1.20 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth257 in
Max Vertical Wall Digging Depth248 in
Max Cutting Height381 in
Max Loading Height269 in
Max Reach Along Ground384 in
Shipping Length of Unit401 in
Shipping Height of Unit131 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth276 in
Max Cutting Height386 in
Max Loading Height276 in
Max Vertical Wall Digging Depth269 in
Max Reach Along Ground401 in
Shipping Length of Unit400 in
Shipping Height of Unit125 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth302 in
Max Cutting Height403 in
Max Reach Along Ground427 in
Max Loading Height291 in
Max Vertical Wall Dig Depth296 in
Shipping Length of Unit398 in
