Caterpillar

416

Backhoe Loader

All backhoe loaders

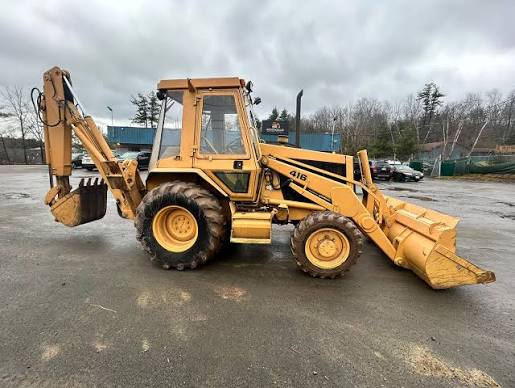

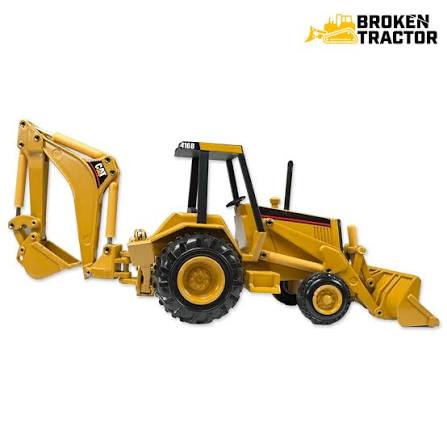

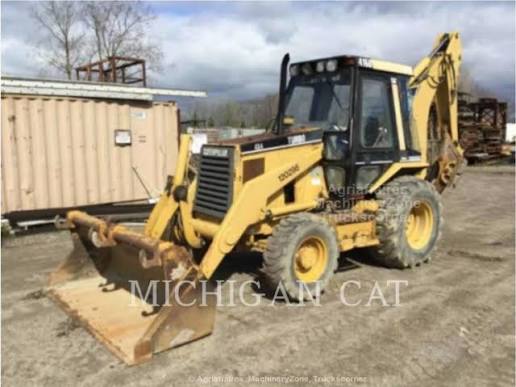

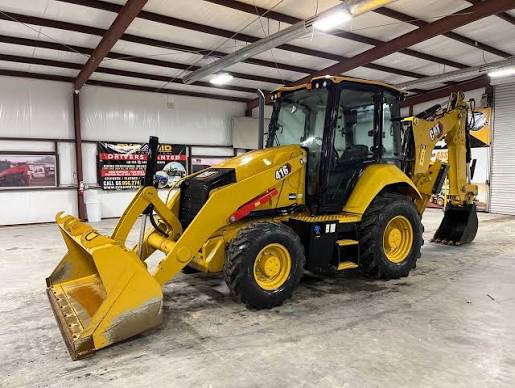

Caterpillar 416 Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

18 data points

General Specifications

General Specifications specifications
Operating Weight lbs (kg)15,591 (7072) - 24,251 (11,000) — Starting 2024 Model Year
Operating Weight (Maximum)24,251.00 lbs (11,000.08 kg) — Starting 2023 Model Year
Bucket Capacity (General Purpose)1.25 cu yd — Starting 2021 Model Year
Max Digging Depth ft. (m)14.2 (4.3) — Starting 2024 Model Year
Lift Capacity at Full Height6,530.00 lbs (2,961.96 kg) — Starting 2023 Model Year
Backhoe Loading Height ft. (m)12 (3.7) - 13.9 (4.2) — Starting 2024 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)25 (40) — Starting 2024 Model Year
Loader SAE HP (kw)86 (64) — Starting 2024 Model Year
Loader Lift Capacity lbs. (kg)6,730 (3,053) — Starting 2024 Model Year
Loader Breakout Force lbs. (kg)12207 (5,537) — Starting 2024 Model Year
EngineC3.6 — Starting 2023 Model Year
Bucket Dig Force (Standard)13,291.00 lbs ft (18,019.94 nm) — Starting 2023 Model Year
Digging Depth (Extendable Stick)17.90 ft (5.46 m) — Starting 2021 Model Year
Digging Depth (Standard Stick)14.00 ft (4.27 m) — Starting 2021 Model Year
Dump Height Max Angle9.10 ft (2.77 m) — Starting 2023 Model Year
Loading Height (Standard)12.20 ft (3.72 m) — Starting 2023 Model Year
Net86 — Starting 2021 Model Year
Stick Dig Force (Standard)7,278.00 lbs ft (9,867.51 nm) — Starting 2023 Model Year
