CaterpillarCaterpillar
434E
Backhoe Loader
37 specifications
1 / 5

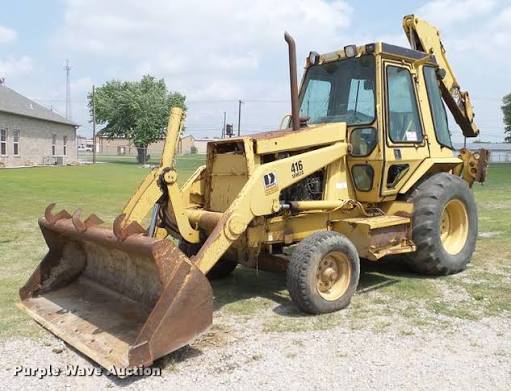

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight 4wd | 13,971 lb |
|---|---|
| Operating Weight 2wd | 13,706 lb |
| Fuel Capacity | 28.1 gal |
| Hydraulic System Fluid Capacity | 20.9 gal |
| Cooling System Fluid Capacity | 5.6 gal |
| Tire Size Front - 2wd / 4wd | 11L-16 10PR/10.5-20 10PR |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 1.9 gal |
| Alternator Supplied Amperage | 52 A |
| Turning Radius | 155 in |
| Transmission Fluid Capacity | 2.7 gal |
| Rear Axle Fluid Capacity | 4.9 gal |
| Front Axle Fluid Capacity | 2.0 gal |
Engine
| Engine Model | 4.236 |
|---|---|
| Displacement | 236 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 67.1 hp |
| Net Power | 61.7 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 28.6 gal/min |
|---|---|
| Relief Valve Pressure | 2,700 psi |
| Pump Type | Variable flow |
Dimensions
| Ground Clearance | 12 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 90 in |
| Transport Length | 270 in |
| Height to Top of Suspended Cab | 108 in |
Transmission
| Max Speed | 19.7 mph |
|---|---|
| Max Speed - Reverse | 19.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | fully synchromesh |
Tires & Wheels
| Rear Tires Size | 16.9-24 8PR/ 19.5L-24 8PR |
|---|
Backhoe
| Dig Depth | 172 in |
|---|---|
| Reach From Swivel | 214 in |
| Dig Depth - Extended | 222 in |
| Load Height - Extended | 159 in |
| Bucket Dig Force | 10,440 lb |
| Reach From Swivel - Extended | 263 in |
| Reach at Load Height - Extended | 126 in |
| Bucket Dig Force - Extended | 10,260 lb |
Loader
| Bucket Capacity | 0.99 yd³ |
|---|---|
| Clearance at Max Dump Height | 104 in |
| Bucket Breakout Force | 7,509 lb |
| Bucket Width | 89 in |
| Reach at Max Dump Height | 29 in |
| Dig Depth | 4 in |
