416D

Backhoe Loader

Bucket Capacity
0.99 yd³
Max Speed
20.4 mph
Gross Power
77.0 hp
Net Power
74.0 hp
All backhoe loaders

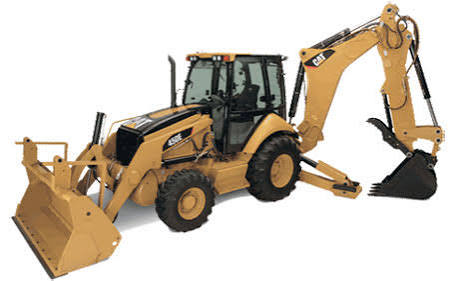

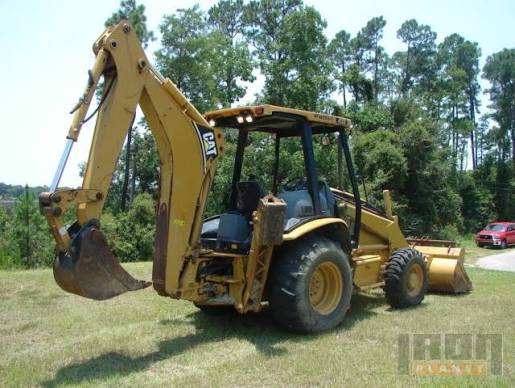

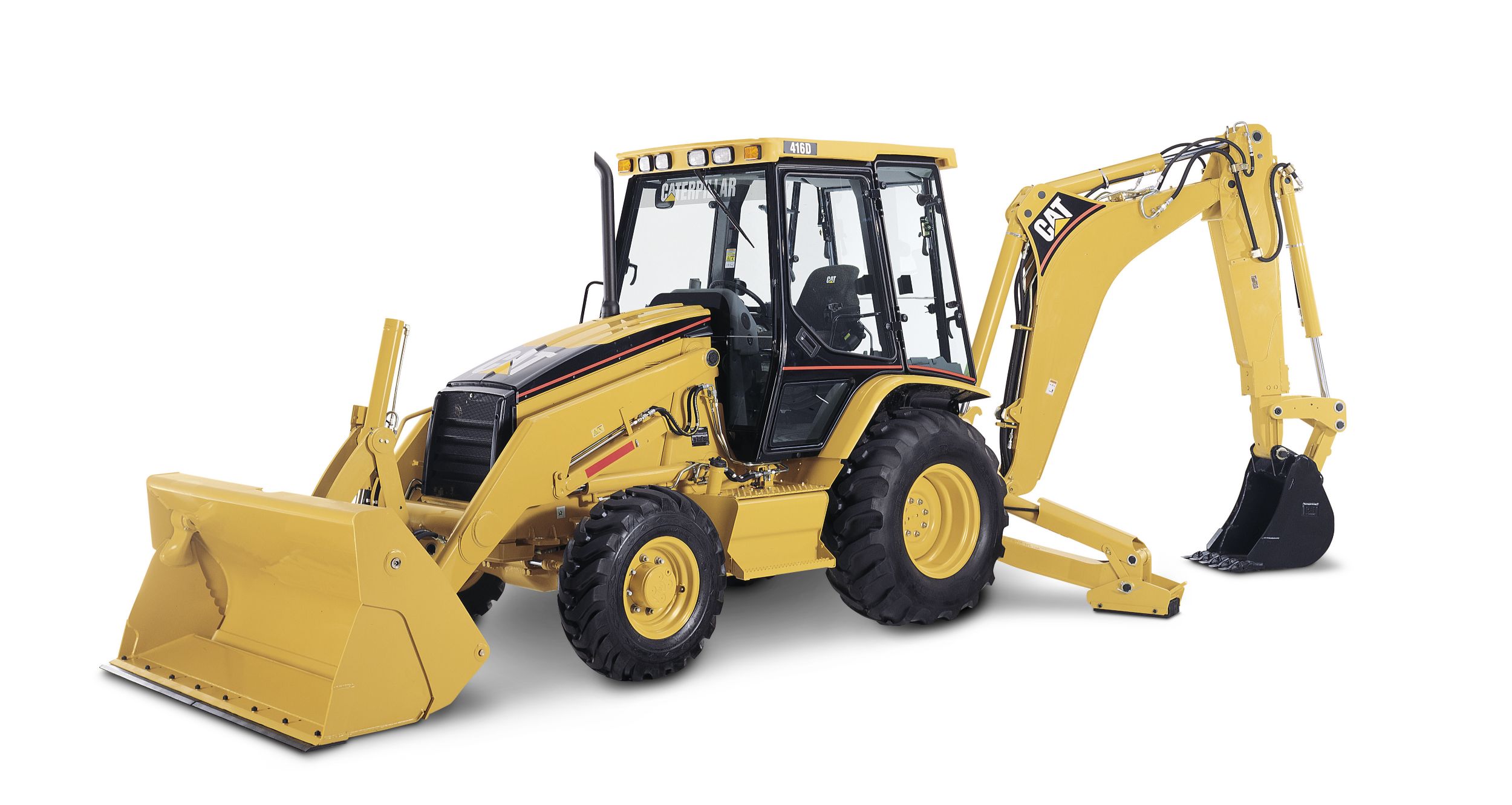

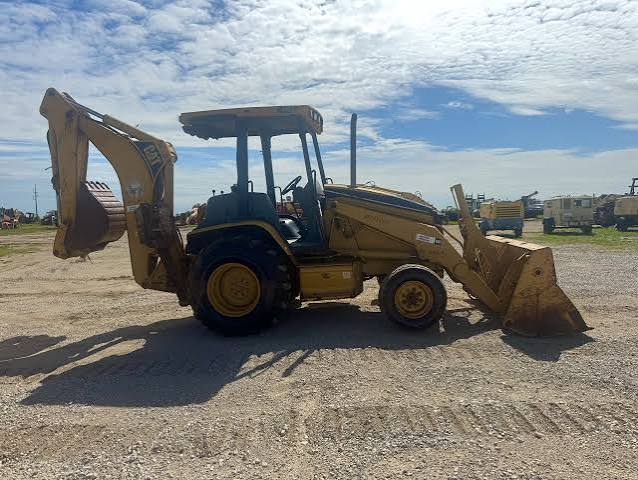

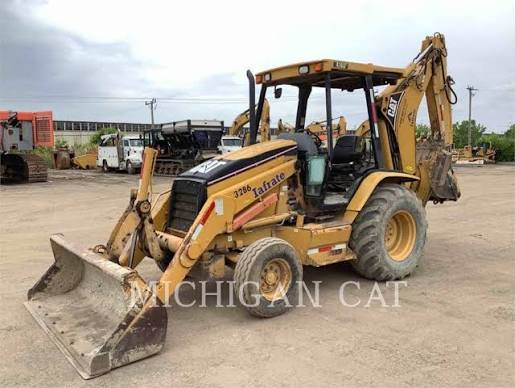

Caterpillar 416D Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

105 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd15,212 lb
Fuel Capacity33.9 gal
Tire Size Front - 2wd / 4wd11Lx1612PR/12.5 / 80x1810PR
Turning Radius211 in
Turning Circle - Outside - Front Wheels317 in
Turning Circle - Outside, Widest Loading Bucket409 in

Engine

Engine specifications
Displacement268 in³
Power Measured @2,200 rpm
Gross Power77.0 hp
Net Power74.0 hp
Number of Cylinders4
Stroke5 in
Bore4 in
Gross Power - SAE J199578.0 hp
Net Power - ISO 924975.0 hp
Net Power - SAE J134974.0 hp
Net Power - EEC 80/126975.0 hp
Net Torque Rise - 1,400 rpm - Standard27.0 %
Net Peak Torque - 1400 rpm - Standard - SAE J1349219 lb-ft

Weights

Weights specifications
Operating Weight - Maximum21,605 lb
Operating Weight - Nominal15,257 lb
Counterweights - Option 1320 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.8 gal/min
Relief Valve Pressure3,002 psi
4WD Cylinder - Bore3 in
Brake SystemInboard/ oil-immersed
Circuit TypeLoad-sensing closed-center
Power SteeringHydrostatic
Pump Capacity at 2,200 rpm37.0 gal/min
Steering TypeFront wheel

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase83 in
Transport Width94 in
Transport Length274 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed20.4 mph
Max Speed - Reverse20.4 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size19.5x2410PR / 19.5L2410PR

General Specifications

General Specifications specifications
Operating Weight lbs (kg)11,376 (5,160) Starting 2006 Model Year
Lift Capacity lbs (kgs)5,292 (2,400) Starting 2006 Model Year
Loading Height ft (m)13.7 (4.2) Starting 2004 Model Year
4th Gear Fwd mph (kmh)20.4 (32.8) Starting 2004 Model Year
Breakout Force lbs (kgs)8,980 (4,073) Starting 2004 Model Year
Digging Depth ft (m)5 (13.5) Starting 2006 Model Year
SAE Net hp (kW)74 (55) Starting 2004 Model Year

Backhoe

Backhoe specifications
Dig Depth174 in
Reach From Swivel223 in
Bucket Dig Force11,702 lb
Loading Height133 in
Bucket Rotation205 °
Loading Reach70 in
Stick Dig Force7,841 lb
E-Stick Extended (1)217 in
E-Stick Extended (2)254 in
E-Stick Extended (3)11,599 lb
E-Stick Extended (4)5,661 lb
E-Stick Extended (5)2,912 lb
E-Stick Retracted (1)178 in
E-Stick Retracted (2)227 in
E-Stick Retracted (3)11,599 lb
E-Stick Retracted (4)7,693 lb
E-Stick Retracted (5)4,279 lb
Reach from Swing Pivot223 in
Stick Lift at 2440 mm (8 ft)4,638 lb

Loader

Loader specifications
Bucket Capacity0.99 yd³
Bucket Capacity - General Purpose1.29 yd³
Lift Capacity at Full Height - Single Tilt5,292 lb
Clearance at Max Dump Height103 in
Bucket Breakout Force8,980 lb
Bucket Width89 in
Reach at Max Dump Height30 in
Dig Depth5 in
Bucket Breakout Force - Single Tilt8,524 lb
Bucket Width - General Purpose1,068 in
Dig Depth - Single Tilt5 in
Dump Height at Maximum Angle - Single Tilt101 in
Dump Reach at Maximum Angle - Single Tilt35 in

Standards

Standards specifications
Cab - ROPSSAE J397 SAE J1040 May 1994 ISO 3741 1994
Cab - SoundANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Exterior SoundSAE J88 April 95 is 73.0 dB(A)
Front Axle (4WD) - Static27,029 lb
Rear Axle - Static61,233 lb
Front Axle (2WD) - Static30,319 lb

Power Train

Power Train specifications
Forward - 2nd5.8 mph
Forward - 3rd12.0 mph
Forward - 4th20.4 mph
Reverse - 2nd5.8 mph
Reverse - 3rd12.0 mph
Power Shuttle Transmission - Forward 1st3.6 mph
Power Shuttle Transmission - Reverse 1st3.6 mph

Axle Ratings

Axle Ratings specifications
Dynamic (1)6,983 lb
Dynamic (2)20,418 lb

Service Refill

Service Refill specifications
Fuel Tank34.0 gal
Engine Oil - With Filter2.0 gal
Front Axle (4WD)2.0 gal
Front Axle - Planetaries0.2 gal
Hydraulic System21.0 gal
Hydraulic Tank10.0 gal
Rear Axle6.4 gal
Cooling System - A/C4.2 gal
Cooling System - High-Ambient4.4 gal
Transmission - Torque Converter - Power Shuttle - 2WD4.0 gal
