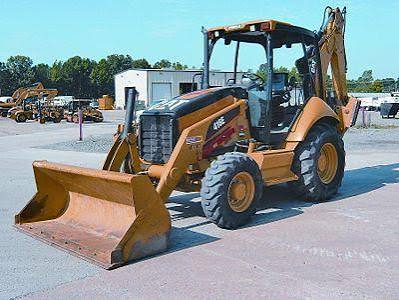

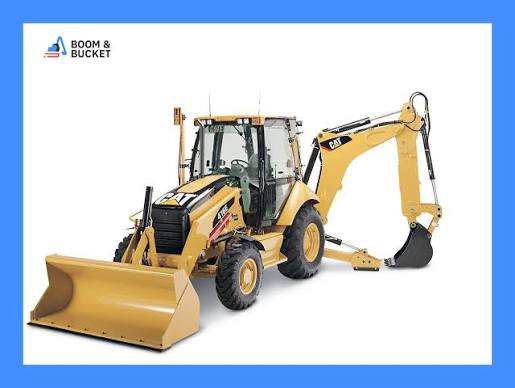

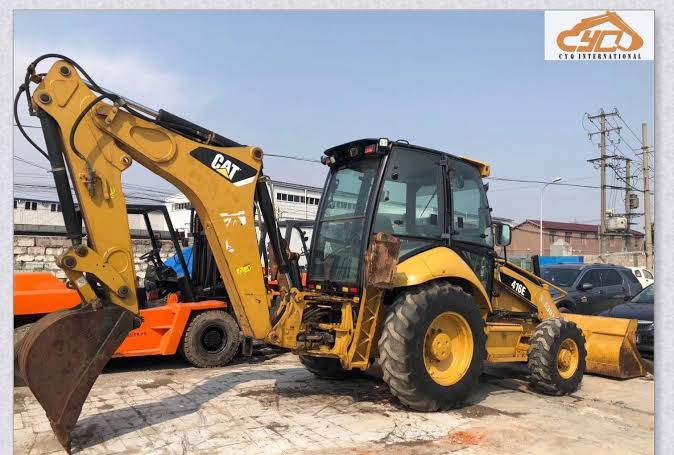

416E

Specifications

123 data points

Operating Specifications specifications
Operating Weight 2wd	14,960 lb
Fuel Capacity	38.0 gal
Hydraulic System Fluid Capacity	21.0 gal
Cooling System Fluid Capacity	4.4 gal
Tire Size Front - 2wd / 4wd	11L-16 (12 ply) F-3 / 335/80R 18 XM37
Operating Voltage	12 V
Oil System Fluid Capacity	2.0 gal
Turning Radius	212 in
Transmission Fluid Capacity	4.9 gal
Max Weight	22,466 lb
Rear Axle Fluid Capacity	4.4 gal
Front Axle Fluid Capacity	2.9 gal
Turning Circle - Outside - Front Wheels	322 in
Turning Circle - Outside, Widest Loading Bucket	432 in

Engine specifications
Engine Model	Cat C4.4 DITA
Displacement	268 in³
Power Measured @	2,200 rpm
Gross Power	78.0 hp
Number of Cylinders	4
Bore	4 in
Stroke	5 in
Net Max Torque	219 lb-ft
Gross Power - SAE J1995	96.0 hp
Net Power - ISO 9249	88.0 hp
Net Power - SAE J1349	87.0 hp
Net Power - EEC 80/1269	88.0 hp
Net Torque Rise	0
Net Torque Rise - 1,400 rpm - Standard	35.0 %
Gross Power - ISO 14396	94.0 hp
Net Peak Torque - 1400 rpm - Standard - SAE J1349	283 lb-ft

Hydraulic System specifications
Pump Flow Capacity	34.8 gal/min
Relief Valve Pressure	3,292 psi
Pump Type	variable-flow axial piston
4WD Cylinder - Bore	3 in
Brake System	Inboard oil-immersed multiple disc
Circuit Type	Closed center load sensing
Power Steering	Hydrostatic HMU
Pump Capacity at 2,200 rpm	34.8 gal/min
Steering Type	Front wheel

Dimensions specifications
Wheelbase	88 in
Transport Width	96 in
Transport Length	283 in
Height to Top of Suspended Cab	111 in

Tires & Wheels specifications
Rear Tires Size	19.5L-24 (12 ply) R4 ATU / 19.5L-R24 XM37

General Specifications specifications
Operating Weight lbs (kg)	22,466 (10,191) Starting 2007 Model Year
Max Digging Depth ft. (m)	14.3 (4.4) Starting 2011 Model Year
Lift Capacity lbs (kgs)	5,503 (2,496) Starting 2007 Model Year
Loading Height ft (m)	13.6 (4.1) Starting 2007 Model Year
4th Gear Fwd mph (kmh)	25 (40) Starting 2010 Model Year
Backhoe Loading Height ft. (m)	11.9 (3.6) Starting 2011 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)	25 (40.0) Starting 2011 Model Year
Breakout Force lbs (kgs)	9,014 (4,089) Starting 2007 Model Year
Digging Depth ft (m)	17.9 (5.5) Starting 2008 Model Year
Loader SAE HP (kw)	87 (64.9) Starting 2011 Model Year
Loader Lift Capacity lbs. (kg)	6,180 (2,803) Starting 2012 Model Year
Loader Breakout Force lbs. (kg)	9,014 (4,089) Starting 2011 Model Year
SAE Net hp (kW)	74 (55) Starting 2006 Model Year
SAE HP (KW)	96 (71) Starting 2010 Model Year
Weight lbs (kg)	14,960 (6,792) Starting 2010 Model Year

Backhoe specifications
Reach From Swivel	221 in
Dig Depth - Extended	215 in
Load Height - Extended	163 in
Reach From Swivel - Extended	263 in
Reach at Load Height - Extended	109 in
Bucket Dig Force - Extended	11,491 lb
Loading Height	143 in
Bucket Rotation	205 °
Loading Reach	72 in
Stick Dig Force	7,200 lb
E-Stick Extended (1)	215 in
E-Stick Extended (2)	263 in
E-Stick Extended (3)	11,491 lb
E-Stick Extended (4)	5,250 lb
E-Stick Extended (5)	2,839 lb
E-Stick Retracted (1)	174 in
E-Stick Retracted (2)	223 in
E-Stick Retracted (3)	11,491 lb
E-Stick Retracted (4)	7,200 lb
E-Stick Retracted (5)	4,539 lb
Reach from Swing Pivot	222 in
Stick Lift at 2440 mm (8 ft)	5,005 lb

Loader specifications
Bucket Capacity	0.99 yd³
Bucket Capacity - General Purpose	0.99 yd³
Lift Capacity at Full Height - Single Tilt	6,180 lb
Clearance at Max Dump Height	104 in
Bucket Breakout Force	9,185 lb
Bucket Width	8 in
Reach at Max Dump Height	31 in
Dig Depth	4 in
Bucket Breakout Force - Single Tilt	10,036 lb
Bucket Width - General Purpose	89 in
Dig Depth - Single Tilt	4 in
Dump Height at Maximum Angle - Single Tilt	104 in
Dump Reach at Maximum Angle - Single Tilt	30 in

Power Train specifications
Forward - 2nd	5.9 mph
Forward - 3rd	12.0 mph
Forward - 4th	25.0 mph
Reverse - 2nd	5.9 mph
Reverse - 3rd	12.0 mph
Power Shuttle Transmission - Forward 1st	3.7 mph
Power Shuttle Transmission - Reverse 1st	3.7 mph

Service Refill specifications
Fuel Tank	45.0 gal
Engine Oil - With Filter	2.0 gal
Front Axle (4WD)	2.9 gal
Front Axle - Planetaries	0.2 gal
Hydraulic System	23.8 gal
Hydraulic Tank	10.0 gal
Rear Axle	4.4 gal
Transmission - Torque Converter - Power Shuttle - 2WD	4.9 gal
Cooling System	5.4 gal
