Caterpillar

420D IT

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
20.4 mph
Gross Power
88.0 hp
Net Power
85.0 hp
All backhoe loaders

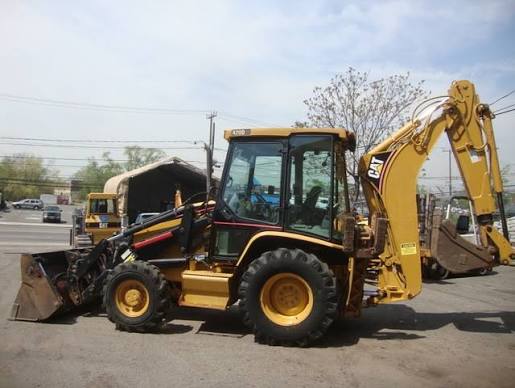

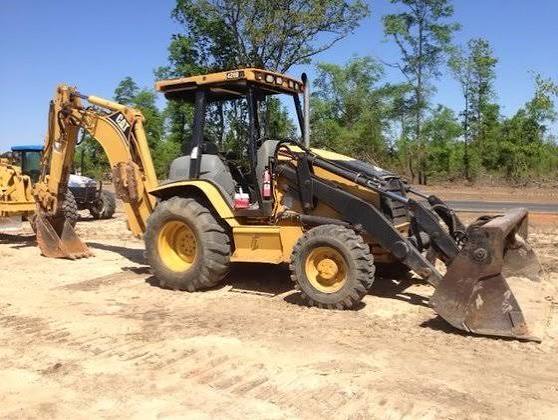

Caterpillar 420D IT Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd15,763 lb
Fuel Capacity33.9 gal
Tire Size Front - 2wd / 4wd11Lx1612PR/12.5 / 80x1810PR
Turning Radius211 in

Engine

Engine specifications
Engine Model3054T
Displacement244 in³
Power Measured @2,200 rpm
Gross Power88.0 hp
Net Power85.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Relief Valve Pressure3,300 psi
Pump TypeLSPC closed center

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase83 in
Transport Width94 in
Transport Length275 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed20.4 mph
Max Speed - Reverse20.4 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size19.5x2410PR / 19.5L2410PR

Backhoe

Backhoe specifications
Dig Depth174 in
Reach From Swivel223 in
Dig Depth - Extended217 in
Load Height - Extended165 in
Bucket Dig Force14,712 lb
Reach From Swivel - Extended263 in
Reach at Load Height - Extended30 in
Bucket Dig Force - Extended14,586 lb

Loader

Loader specifications
Bucket Capacity1.29 yd³
Clearance at Max Dump Height101 in
Bucket Breakout Force10,139 lb
Bucket Width89 in
Reach at Max Dump Height33 in
Dig Depth5 in
