Caterpillar

420F

Backhoe Loader

Max Speed
25.0 mph
Gross Power
102.0 hp
Net Power
92.6 hp
All backhoe loaders

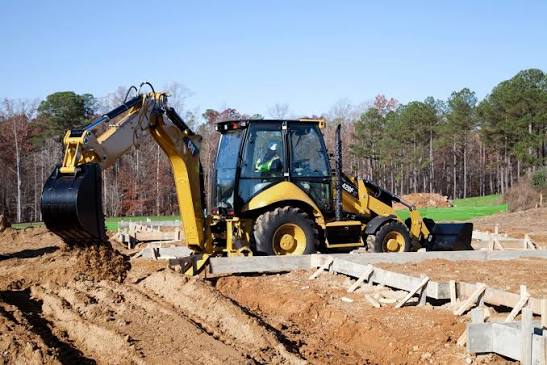

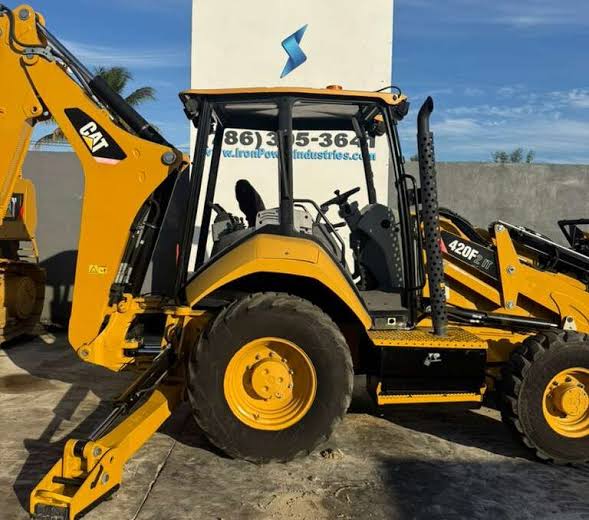

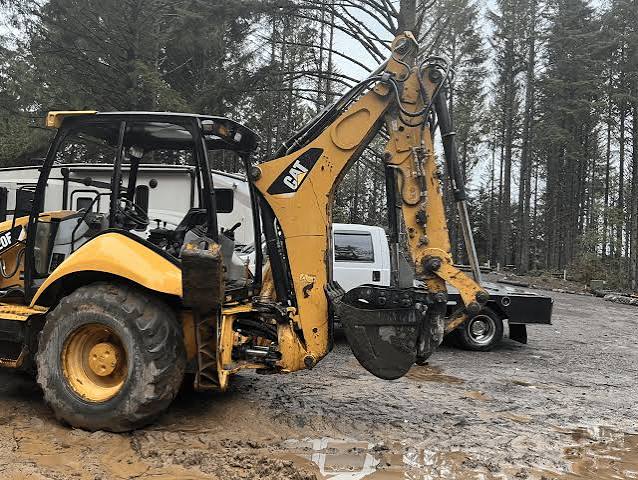

Caterpillar 420F Backhoe Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,395 lb
Fuel Capacity43.6 gal
Hydraulic System Fluid Capacity25.1 gal
Cooling System Fluid Capacity5.8 gal
Oil System Fluid Capacity2.4 gal
Transmission Fluid Capacity4.9 gal
Max Weight24,251 lb

Engine

Engine specifications
Engine ModelC4.4 ACERT
Displacement269 in³
Power Measured @2,200 rpm
Gross Power102.0 hp
Net Power92.6 hp
Stroke5 in
Bore4 in
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Pump TypeVariable Flow Axial Piston

Dimensions

Dimensions specifications
Transport Length283 in
Height to Top of Suspended Cab111 in

Transmission

Transmission specifications
Max Speed25.0 mph

General Specifications

General Specifications specifications
Operating Weight lbs (kg)15,395 (6,938) Starting 2013 Model Year
Max Digging Depth ft. (m)14.3 (4.4) Starting 2013 Model Year
Backhoe Loading Height ft. (m)11.9 (3.6) Starting 2013 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)25 (40) Starting 2013 Model Year
Loader SAE HP (kw)93 (69.3) Starting 2013 Model Year
Loader Lift Capacity lbs. (kg)7,237 (3,237) Starting 2013 Model Year
Loader Breakout Force lbs. (kg)11,283 (5,118) Starting 2013 Model Year

Backhoe

Backhoe specifications
Dig Depth173 in
Load Height143 in

Loader

Loader specifications
Lift Capacity7,238 lb
Bucket Breakout Force11,283 lb
