CaterpillarCaterpillar
434E
Backhoe Loader
37 specifications
1 / 5

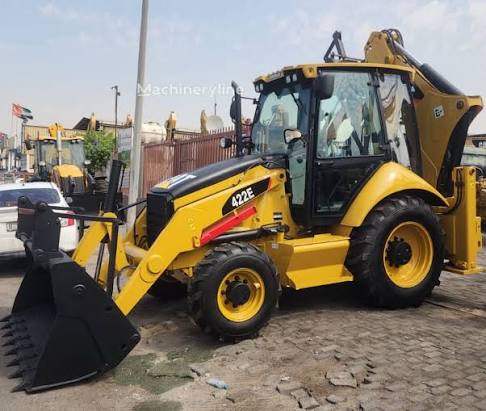

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight 2wd | 22,487 lb |
|---|---|
| Fuel Capacity | 38.4 gal |
| Hydraulic System Fluid Capacity | 10.1 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Operating Voltage | 12 V |
| Transmission Fluid Capacity | 4.9 gal |
| Max Weight | 22,487 lb |
| Rear Axle Fluid Capacity | 4.3 gal |
| Front Axle Fluid Capacity | 3.0 gal |
Engine
| Engine Model | 3054C |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 78.0 hp |
| Net Power | 76.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 33.1 gal/min |
|---|---|
| Relief Valve Pressure | 227 psi |
| Pump Type | Variable-Flow Axial-Piston |
Dimensions
| Wheelbase | 88 in |
|---|---|
| Transport Width | 94 in |
| Transport Length | 228 in |
| Height to Top of Suspended Cab | 113 in |
Transmission
| Max Speed | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power shuttle |
Backhoe
| Dig Depth | 194 in |
|---|---|
| Reach From Swivel | 220 in |
| Dig Depth - Extended | 235 in |
| Load Height - Extended | 170 in |
| Reach From Swivel - Extended | 260 in |
| Reach at Load Height - Extended | 104 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 103 in |
| Bucket Breakout Force | 8,992 lb |
| Bucket Width | 95 in |
| Dig Depth | 4 in |
