Caterpillar

426C

Backhoe Loader

Bucket Capacity
1.29 yd³
Max Speed
20.4 mph
Gross Power
88.0 hp
Net Power
85.0 hp
All backhoe loaders

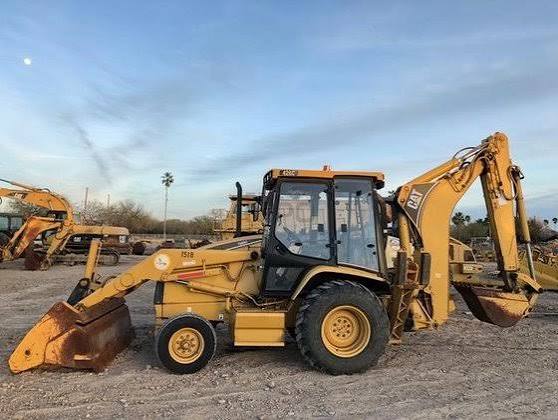

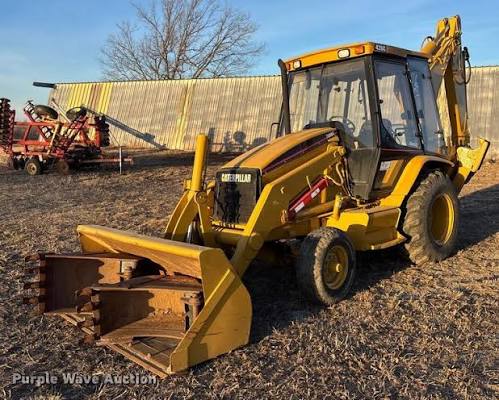

Caterpillar 426C Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 2wd15,550 lb
Fuel Capacity33.9 gal
Tire Size Front - 2wd / 4wd11L-16 12 PR F3

Engine

Engine specifications
Engine Model3054 DIT
Displacement243 in³
Power Measured @2,200 rpm
Gross Power88.0 hp
Net Power85.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase83 in
Transport Width94 in
Transport Length287 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed20.4 mph
Max Speed - Reverse20.4 mph
Number of Forward Gears4
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9-24 10 PR R4

Backhoe

Backhoe specifications
Dig Depth186 in
Dig Depth - Extended236 in
Load Height - Extended194 in
Reach at Load Height - Extended108 in

Loader

Loader specifications
Bucket Capacity1.29 yd³
Bucket Breakout Force10,180 lb
Bucket Width89 in
Reach at Max Dump Height32 in
Dig Depth4 in
