Caterpillar

428 II

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
18.3 mph
Gross Power
75.1 hp
Net Power
69.8 hp
All backhoe loaders

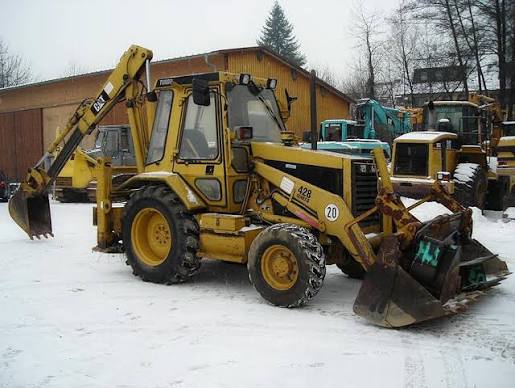

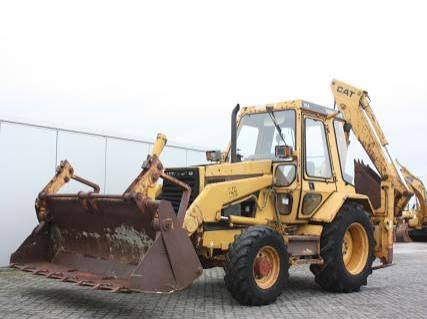

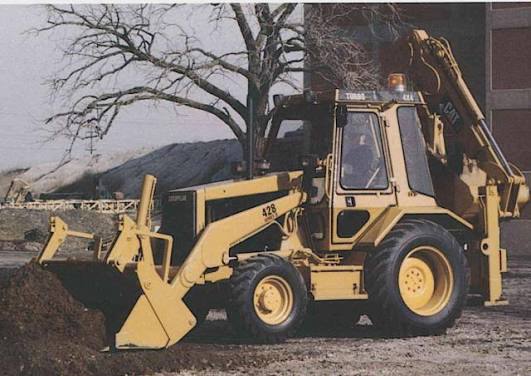

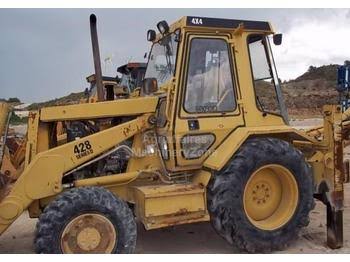

Caterpillar 428 II Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 2wd15,748 lb
Tire Size Front - 2wd / 4wd9-16 10PR / 10.5-20 10PR
Turning Radius155 in

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Gross Power75.1 hp
Net Power69.8 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.6 gal/min
Relief Valve Pressure2,700 psi

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase83 in
Transport Width95 in
Transport Length224 in
Height to Top of Suspended Cab110 in

Transmission

Transmission specifications
Max Speed18.3 mph
Max Speed - Reverse18.4 mph
Number of Forward Gears4
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9-28 10 PR

Backhoe

Backhoe specifications
Dig Depth187 in
Reach From Swivel212 in
Dig Depth - Extended236 in
Load Height - Extended166 in
Bucket Dig Force10,438 lb
Reach From Swivel - Extended261 in
Load Height138 in
Bucket Dig Force - Extended10,258 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height104 in
Bucket Breakout Force8,048 lb
Bucket Width94 in
Reach at Max Dump Height33 in
Dig Depth4 in
