Caterpillar

428C

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
19.8 mph
Gross Power
75.0 hp
Net Power
78.0 hp
All backhoe loaders

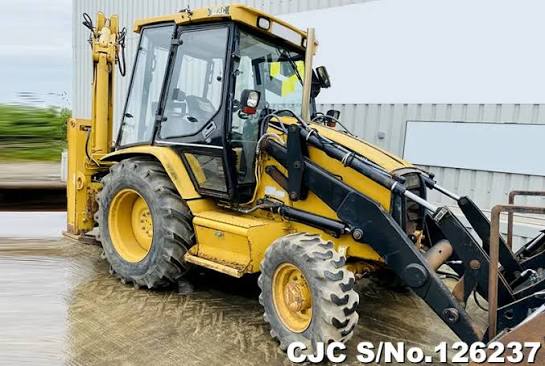

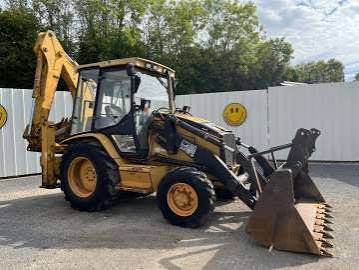

Caterpillar 428C Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 2wd13,889 lb
Fuel Capacity33.9 gal
Hydraulic System Fluid Capacity20.9 gal
Cooling System Fluid Capacity5.0 gal
Tire Size Front - 2wd / 4wd11 x 16 / 10.5 x 20
Operating Voltage12 V
Oil System Fluid Capacity2.0 gal
Alternator Supplied Amperage52 A
Turning Radius319 in
Transmission Fluid Capacity4.0 gal
Max Weight21,385 lb
Rear Axle Fluid Capacity6.4 gal

Engine

Engine specifications
Engine Model3054
Displacement244 in³
Power Measured @2,200 rpm
Gross Power75.0 hp
Net Power78.0 hp
Number of Cylinders4
AspirationNatural
Net Torque Rise0

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Relief Valve Pressure3,002 psi
Pump TypePiston

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase83 in
Transport Width95 in
Transport Length227 in
Height to Top of Suspended Cab115 in

Transmission

Transmission specifications
Max Speed19.8 mph
Max Speed - Reverse19.8 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePower Shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9 x 28

Backhoe

Backhoe specifications
Dig Depth189 in
Reach From Swivel221 in
Dig Depth - Extended230 in
Load Height - Extended176 in
Reach From Swivel - Extended261 in
Reach at Load Height - Extended102 in

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height102 in
Bucket Width94 in
Reach at Max Dump Height32 in
Dig Depth5 in
