Caterpillar

430D

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
21.0 mph
Gross Power
98.0 hp
Net Power
94.0 hp
All backhoe loaders

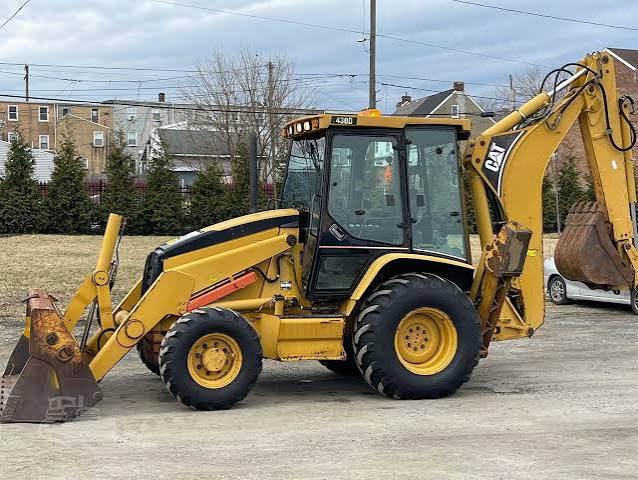

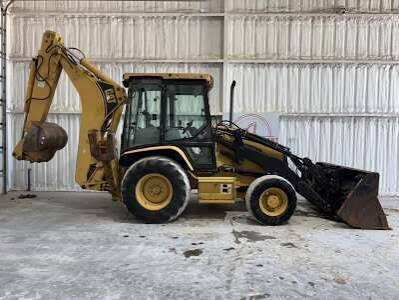

Caterpillar 430D Backhoe Loader
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

104 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd16,215 lb
Fuel Capacity33.9 gal
Tire Size Front - 2wd / 4wd11Lx1612PR / 12.5/80x1810PR
Turning Radius214 in
Turning Circle - Outside - Front Wheels322 in
Turning Circle - Outside, Widest Loading Bucket426 in

Engine

Engine specifications
Engine ModelCat 3054T
Displacement243 in³
Power Measured @2,200 rpm
Gross Power98.0 hp
Net Power94.0 hp
Number of Cylinders4
Bore4 in
Stroke5 in
Gross Power - SAE J199598.0 hp
Net Power - SAE J134994.0 hp
Net Torque Rise - 1,400 rpm - Standard23.1 %
Net Peak Torque - 1400 rpm - Standard - SAE J1349277 lb-ft

Weights

Weights specifications
Operating Weight - Maximum21,605 lb
Operating Weight - Nominal16,217 lb
Counterweights - Option 1320 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Relief Valve Pressure3,300 psi
4WD Cylinder - Bore3 in
Brake SystemInboard oil-immersed
Circuit TypeLoad-sensing closed-center
Power SteeringHydrostatic
Pump Capacity at 2,200 rpm43.0 gal/min
Steering TypeFront wheel

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase83 in
Transport Width94 in
Transport Length289 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed21.0 mph
Max Speed - Reverse21.0 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.5/80x1810PR / 19.5x2410PR

General Specifications

General Specifications specifications
Operating Weight lbs (kg)15,772 (7,154) Starting 2004 Model Year
Lift Capacity lbs (kgs)6,391 (2,899) Starting 2004 Model Year
Loading Height ft (m)22 (6.7) Starting 2004 Model Year
4th Gear Fwd mph (kmh)20.9 (33.6) Starting 2004 Model Year
Breakout Force lbs (kgs)10,269 (4,658) Starting 2004 Model Year
Digging Depth ft (m)19.9 (6.1) Starting 2004 Model Year
SAE Net hp (kW)94 (70) Starting 2004 Model Year

Backhoe

Backhoe specifications
Dig Depth183 in
Reach From Swivel278 in
Dig Depth - Extended240 in
Load Height - Extended181 in
Bucket Dig Force14,732 lb
Reach From Swivel - Extended331 in
Reach at Load Height - Extended121 in
Bucket Dig Force - Extended14,602 lb
Loading Height151 in
Bucket Rotation205 °
Loading Reach72 in
Stick Dig Force9,448 lb
E-Stick Extended (1)240 in
E-Stick Extended (2)288 in
E-Stick Extended (3)14,602 lb
E-Stick Extended (4)6,430 lb
E-Stick Extended (5)4,064 lb
E-Stick Retracted (1)192 in
E-Stick Retracted (2)244 in
E-Stick Retracted (3)14,602 lb
E-Stick Retracted (4)8,865 lb
E-Stick Retracted (5)7,855 lb
Reach from Swing Pivot235 in
Stick Lift at 2440 mm (8 ft)14,821 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Bucket Capacity - General Purpose1.40 yd³
Lift Capacity at Full Height - Single Tilt6,391 lb
Clearance at Max Dump Height102 in
Bucket Breakout Force10,274 lb
Bucket Width95 in
Reach at Max Dump Height32 in
Dig Depth5 in
Bucket Breakout Force - Single Tilt10,269 lb
Bucket Width - General Purpose1,140 in
Dig Depth - Single Tilt7 in
Dump Height at Maximum Angle - Single Tilt103 in
Dump Reach at Maximum Angle - Single Tilt32 in

Standards

Standards specifications
Cab - ROPSSAE J397/SAE J1040 May 1994/ISO 3741 1994
Cab - SoundANSI/SAE J1166 Oct 98 is 78.5 dB(A)
Exterior SoundSAE J88 April 95 is 73.0 dB(A)
Front Axle (4WD) - Static27,029 lb
Rear Axle - Static61,233 lb
Front Axle (2WD) - Static30,319 lb

Power Train

Power Train specifications
Power Shuttle Transmission - Forward 1st3.7 mph
Power Shuttle Transmission - Reverse 1st3.7 mph

Axle Ratings

Axle Ratings specifications
Dynamic (1)6,983 lb
Dynamic (2)20,418 lb

Service Refill

Service Refill specifications
Fuel Tank34.0 gal
Engine Oil - With Filter2.0 gal
Front Axle (4WD)2.0 gal
Front Axle - Planetaries0.2 gal
Hydraulic System21.0 gal
Hydraulic Tank10.0 gal
Rear Axle6.4 gal
Cooling System - A/C4.2 gal
Cooling System - High-Ambient4.4 gal
Transmission - Torque Converter - Power Shuttle - 2WD4.0 gal
