Caterpillar

430D IT

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
21.0 mph
Gross Power
98.0 hp
Net Power
94.0 hp
All backhoe loaders

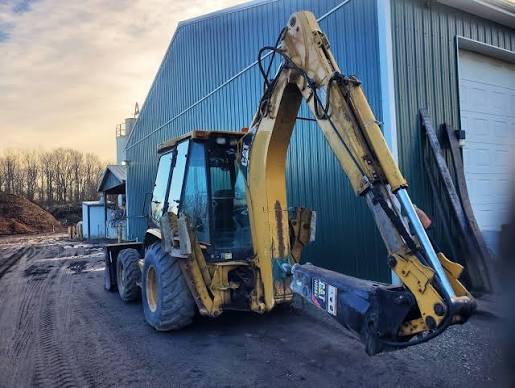

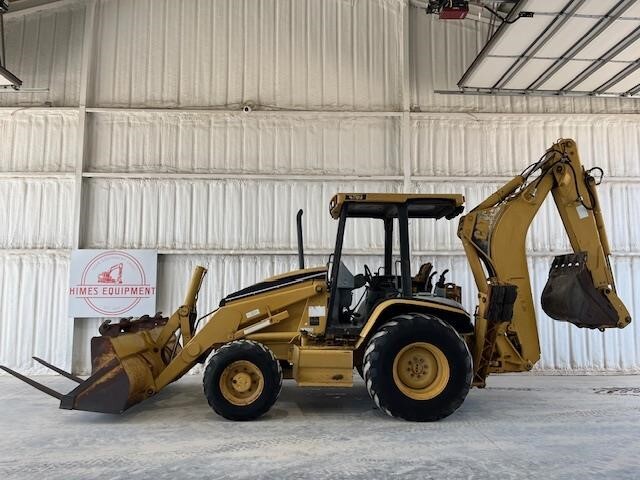

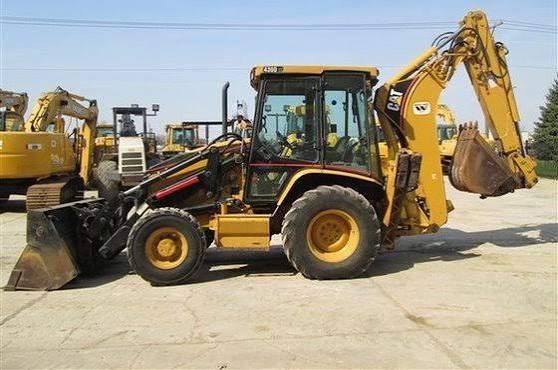

Caterpillar 430D IT Backhoe Loader
1 / 5
Image 1 of 5
Image: equipmenttrader.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd16,215 lb
Fuel Capacity33.9 gal
Tire Size Front - 2wd / 4wd11Lx1612PR / 12.5/80x1810PR
Turning Radius214 in

Engine

Engine specifications
Engine Model3054T
Displacement244 in³
Power Measured @2,200 rpm
Gross Power98.0 hp
Net Power94.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity43.1 gal/min
Relief Valve Pressure3,300 psi
Pump TypeLSPC closed center

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase83 in
Transport Width94 in
Transport Length289 in
Height to Top of Suspended Cab109 in

Transmission

Transmission specifications
Max Speed21.0 mph
Max Speed - Reverse21.0 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepower shuttle

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size12.5/80x1810PR / 19.5x2410PR

Backhoe

Backhoe specifications
Dig Depth183 in
Reach From Swivel278 in
Dig Depth - Extended240 in
Load Height - Extended181 in
Bucket Dig Force14,732 lb
Reach From Swivel - Extended331 in
Reach at Load Height - Extended121 in
Bucket Dig Force - Extended14,602 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height102 in
Bucket Breakout Force10,274 lb
Bucket Width95 in
Reach at Max Dump Height32 in
Dig Depth5 in
