Caterpillar

436 II

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
18.5 mph
Gross Power
83.0 hp
Net Power
77.0 hp
All backhoe loaders

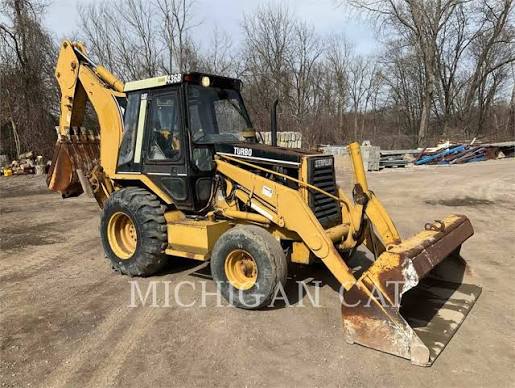

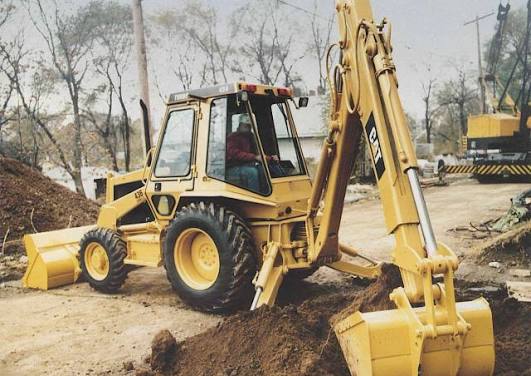

Caterpillar 436 II Backhoe Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 2wd15,163 lb
Tire Size Front - 2wd / 4wd11-16 12PR/10.5-20 10PR
Turning Radius155 in

Engine

Engine specifications
Engine Model4.236
Displacement236 in³
Gross Power83.0 hp
Net Power77.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.5 gal/min
Relief Valve Pressure2,700 psi

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase83 in
Transport Width90 in
Transport Length280 in
Height to Top of Suspended Cab110 in

Transmission

Transmission specifications
Max Speed18.5 mph
Max Speed - Reverse18.6 mph
Number of Forward Gears4
Number of Reverse Gears4

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9-28 10PR/16.9-28 10 PR

Backhoe

Backhoe specifications
Dig Depth215 in
Reach From Swivel239 in
Dig Depth - Extended257 in
Load Height - Extended172 in
Bucket Dig Force11,003 lb
Reach From Swivel - Extended281 in
Load Height150 in
Bucket Dig Force - Extended10,823 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height103 in
Bucket Breakout Force7,891 lb
Bucket Width89 in
Reach at Max Dump Height31 in
Dig Depth3 in
