CaterpillarCaterpillar
434E
Backhoe Loader
37 specifications
1 / 5

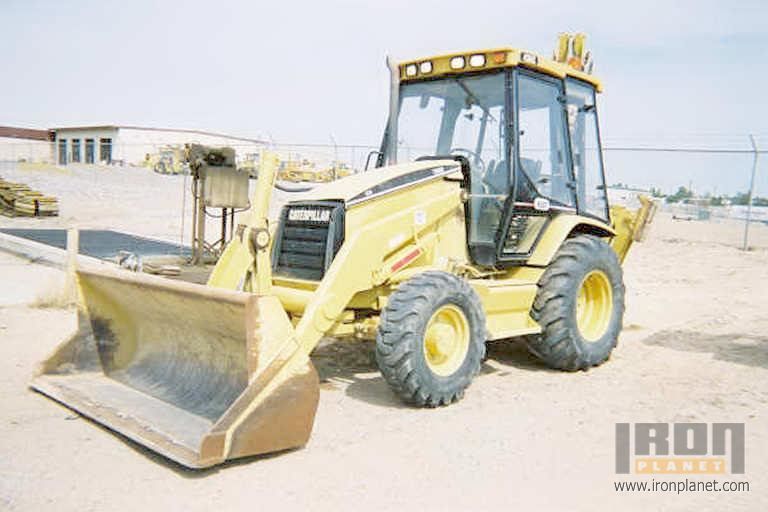

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight 2wd | 15,700 lb |
|---|---|
| Fuel Capacity | 33.9 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Tire Size Front - 2wd / 4wd | 11L-16 / 12.5/80-18 |
| Oil System Fluid Capacity | 1.9 gal |
| Turning Radius | 428 in |
| Transmission Fluid Capacity | 4.1 gal |
| Front Axle Fluid Capacity | 2.0 gal |
Engine
| Engine Model | 3054 DIT |
|---|---|
| Displacement | 243 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 97.0 hp |
| Net Power | 93.0 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 43.1 gal/min |
|---|
Transmission
| Max Speed | 20.9 mph |
|---|---|
| Max Speed - Reverse | 20.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power Shuttle |
Tires & Wheels
| Rear Tires Size | 19.5-24 |
|---|
Backhoe
| Dig Depth | 196 in |
|---|---|
| Dig Depth - Extended | 245 in |
| Load Height - Extended | 189 in |
| Reach at Load Height - Extended | 108 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 106 in |
| Bucket Breakout Force | 10,270 lb |
| Bucket Width | 95 in |
| Reach at Max Dump Height | 30 in |
| Dig Depth | 2 in |
