CaterpillarCaterpillar
434E
Backhoe Loader
37 specifications
1 / 5

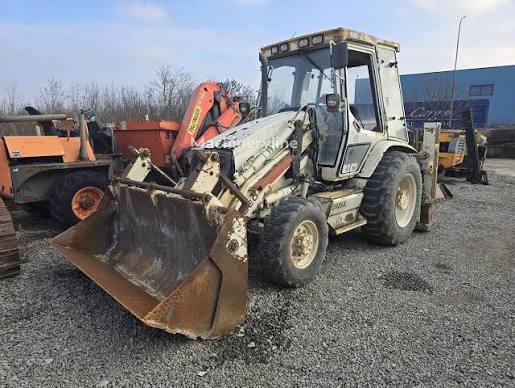

Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight 4wd | 16,667 lb |
|---|---|
| Fuel Capacity | 33.9 gal |
| Hydraulic System Fluid Capacity | 20.9 gal |
| Cooling System Fluid Capacity | 5.8 gal |
| Tire Size Front - 2wd / 4wd | 335/80 x R18 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.0 gal |
| Alternator Supplied Amperage | 52 A |
| Turning Radius | 319 in |
| Transmission Fluid Capacity | 4.8 gal |
| Rear Axle Fluid Capacity | 6.4 gal |
| Front Axle Fluid Capacity | 2.0 gal |
Engine
| Engine Model | 3054 |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 89.0 hp |
| Net Power | 85.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 42.8 gal/min |
|---|---|
| Relief Valve Pressure | 3,000 psi |
| Pump Type | Piston |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 95 in |
| Transport Length | 227 in |
| Height to Top of Suspended Cab | 115 in |
Transmission
| Max Speed | 19.6 mph |
|---|---|
| Max Speed - Reverse | 19.6 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Power Shuttle |
Tires & Wheels
| Rear Tires Size | 16.9 x R28 |
|---|
Backhoe
| Dig Depth | 192 in |
|---|---|
| Reach From Swivel | 226 in |
| Dig Depth - Extended | 234 in |
| Load Height - Extended | 172 in |
| Reach From Swivel - Extended | 267 in |
| Reach at Load Height - Extended | 103 in |
Loader
| Bucket Capacity | 1.40 yd³ |
|---|---|
| Clearance at Max Dump Height | 106 in |
| Bucket Breakout Force | 11,330 lb |
| Bucket Width | 94 in |
| Reach at Max Dump Height | 31 in |
| Dig Depth | 2 in |
