Caterpillar

446

Backhoe Loader

Bucket Capacity
1.50 yd³
Max Speed
20.6 mph
Gross Power
103.0 hp
Net Power
95.0 hp
All backhoe loaders

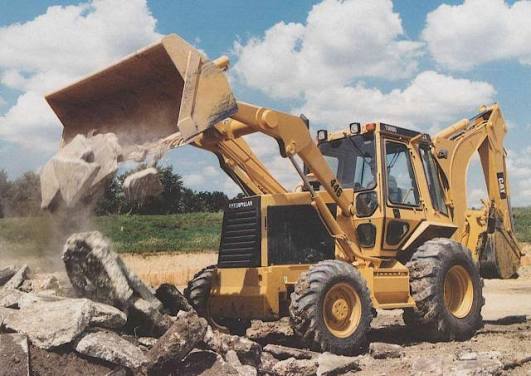

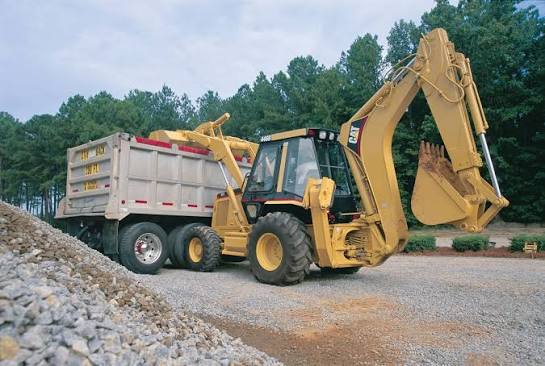

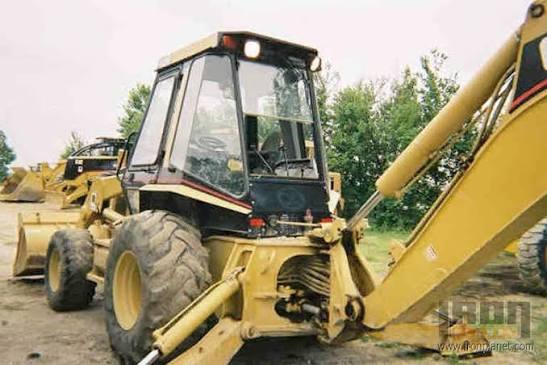

Caterpillar 446 Backhoe Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Operating Weight 4wd20,036 lb
Operating Weight 2wd19,604 lb
Fuel Capacity33.1 gal
Hydraulic System Fluid Capacity40.7 gal
Cooling System Fluid Capacity8.0 gal
Tire Size Front - 2wd / 4wd14.5/75-16.1 10PR / 12.5-20 10PR
Operating Voltage12 V
Oil System Fluid Capacity3.0 gal
Alternator Supplied Amperage55 A
Turning Radius166 in
Transmission Fluid Capacity6.9 gal
Rear Axle Fluid Capacity8.2 gal
Front Axle Fluid Capacity2.5 gal

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Power Measured @2,200 rpm
Gross Power103.0 hp
Net Power95.0 hp
Number of Cylinders4
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.8 gal/min
Relief Valve Pressure2,900 psi
Pump TypeVariable-flow

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase89 in
Transport Width96 in
Transport Length313 in
Height to Top of Suspended Cab113 in

Transmission

Transmission specifications
Max Speed20.6 mph
Max Speed - Reverse22.7 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypePowershift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size21L-24 12PR / 21L-24 12PR

Backhoe

Backhoe specifications
Dig Depth206 in
Reach From Swivel260 in
Dig Depth - Extended258 in
Load Height - Extended193 in
Bucket Dig Force13,573 lb
Reach From Swivel - Extended311 in
Reach at Load Height - Extended128 in
Bucket Dig Force - Extended13,523 lb

Loader

Loader specifications
Bucket Capacity1.50 yd³
Clearance at Max Dump Height107 in
Bucket Breakout Force12,005 lb
Bucket Width96 in
Reach at Max Dump Height35 in
Dig Depth6 in
