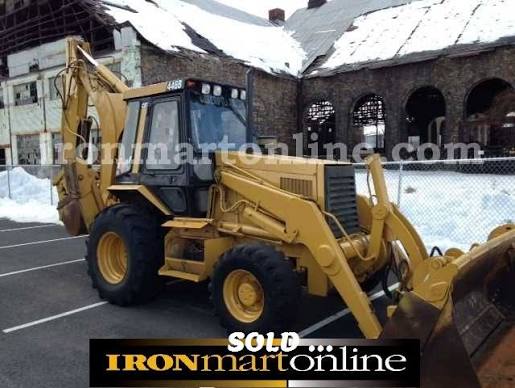

446B

Specifications

101 data points

Operating Specifications specifications
Operating Weight 4wd	19,599 lb
Fuel Capacity	33.1 gal
Tire Size Front - 2wd / 4wd	14.5/75 x16.110PRF3 / 12.5x2010PRR4
Turning Radius	226 in
Turning Circle - Outside - Front Wheels	346 in
Turning Circle - Outside, Widest Loading Bucket	448 in

Hydraulic System specifications
Pump Flow Capacity	47.1 gal/min
Relief Valve Pressure	3,249 psi
4WD Cylinder - Bore	3 in
Brake System	Fully enclosed hydraulic multiple disk
Circuit Type	Closed - center
Power Steering	Hydrostatic
Pump Capacity at 2,200 rpm	47.0 gal/min
Steering Type	Front Wheel

Dimensions specifications
Ground Clearance	13 in
Wheelbase	89 in
Transport Width	96 in
Transport Length	302 in
Height to Top of Suspended Cab	113 in

Tires & Wheels specifications
Rear Tires Size	21Lx2412PRR4

Backhoe specifications
Dig Depth	206 in
Reach From Swivel	260 in
Dig Depth - Extended	258 in
Load Height - Extended	193 in
Bucket Dig Force	15,200 lb
Reach From Swivel - Extended	311 in
Reach at Load Height - Extended	128 in
Bucket Dig Force - Extended	15,150 lb
Loading Height	170 in
Bucket Rotation	169 °
Loading Reach	80 in
Stick Dig Force	10,800 lb
E-Stick Extended (1)	258 in
E-Stick Extended (2)	309 in
E-Stick Extended (3)	15,150 lb
E-Stick Extended (4)	7,830 lb
E-Stick Extended (5)	4,600 lb
E-Stick Retracted (1)	204 in
E-Stick Retracted (2)	258 in
E-Stick Retracted (3)	15,150 lb
E-Stick Retracted (4)	11,200 lb
E-Stick Retracted (5)	13,660 lb
Reach from Swing Pivot	260 in
Stick Lift at 2440 mm (8 ft)	13,540 lb

Loader specifications
Bucket Capacity	1.50 yd³
Bucket Capacity - General Purpose	1.80 yd³
Lift Capacity at Full Height - Single Tilt	8,610 lb
Clearance at Max Dump Height	107 in
Bucket Breakout Force	12,589 lb
Bucket Width	96 in
Reach at Max Dump Height	35 in
Dig Depth	6 in
Bucket Breakout Force - Single Tilt	11,610 lb
Bucket Width - General Purpose	1,152 in
Dig Depth - Single Tilt	6 in
Dump Height at Maximum Angle - Single Tilt	107 in
Dump Reach at Maximum Angle - Single Tilt	36 in
