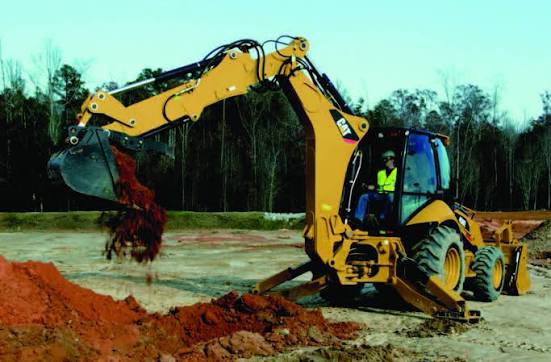

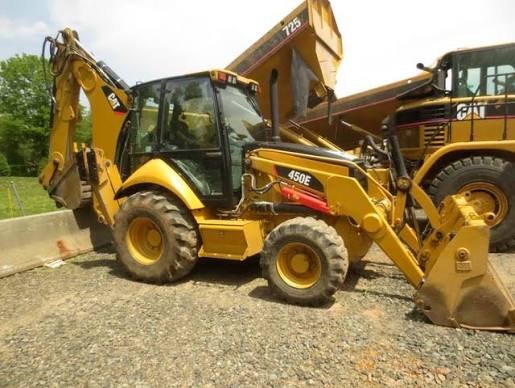

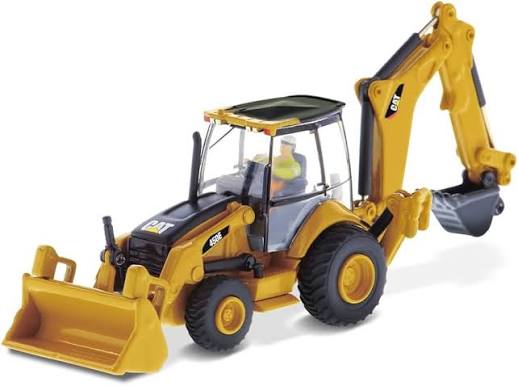

450E

Specifications

124 data points

Operating Specifications specifications
Operating Weight 4wd	24,141 lb
Fuel Capacity	38.4 gal
Hydraulic System Fluid Capacity	26.5 gal
Cooling System Fluid Capacity	6.8 gal
Tire Size Front - 2wd / 4wd	15-19.5 12PR
Operating Voltage	12 V
Oil System Fluid Capacity	2.2 gal
Turning Radius	319 in
Transmission Fluid Capacity	5.6 gal
Max Weight	27,115 lb
Rear Axle Fluid Capacity	5.0 gal
Front Axle Fluid Capacity	2.9 gal
Turning Circle - Outside - Front Wheels	329 in
Turning Circle - Outside, Widest Loading Bucket	439 in

Engine specifications
Engine Model	C4.4
Displacement	268 in³
Gross Power	137.0 hp
Net Power	125.0 hp
Stroke	5 in
Bore	4 in
Net Max Torque	380 lb-ft
Gross Power - SAE J1995	137.0 hp
Net Power - ISO 9249	125.0 hp
Net Power - SAE J1349	124.0 hp
Net Power - EEC 80/1269	125.0 hp
Net Torque Rise	0
Net Torque Rise - 1,400 rpm - Standard	28.0 %
Net Peak Torque - 1400 rpm - Standard - SAE J1349	380 lb-ft
Gross Power - ISO 14396	137.0 hp

Weights specifications
Operating Weight - Maximum	27,115 lb
Operating Weight - Nominal	24,141 lb

Hydraulic System specifications
Pump Flow Capacity	51.3 gal/min
Relief Valve Pressure	3,800 psi
Pump Type	variable-flow axial piston secondary gear
4WD Cylinder - Bore	3 in
Brake System	Boosted outboard oil-immersed multiple disc
Circuit Type	Closed center load sensing
Power Steering	Hydrostatic Hand Metering Unit
Pump Capacity at 2,200 rpm	51.3 gal/min
Steering Type	Ackerman

Dimensions specifications
Wheelbase	88 in
Transport Width	96 in
Transport Length	312 in
Height to Top of Suspended Cab	114 in

Tires & Wheels specifications
Rear Tires Size	21L-24 R4 18PR

General Specifications specifications
Operating Weight lbs (kg)	25,357 (11,502) Starting 2007 Model Year
Max Digging Depth ft. (m)	17.3 (5.3) Starting 2011 Model Year
Lift Capacity lbs (kgs)	8,439 (3,828) Starting 2007 Model Year
Loading Height ft (m)	16.6 (5.1) Starting 2007 Model Year
4th Gear Fwd mph (kmh)	25 (40) Starting 2010 Model Year
Backhoe Loading Height ft. (m)	14.6 (4.5) Starting 2011 Model Year
Travel Speed 4th Gear Fwd MPH (kmh)	25 (40.0) Starting 2011 Model Year
Breakout Force lbs (kgs)	12,661 (5,743) Starting 2007 Model Year
Digging Depth ft (m)	21.3 (6.5) Starting 2007 Model Year
Loader SAE HP (kw)	124 (92.5) Starting 2011 Model Year
Loader Lift Capacity lbs. (kg)	11,375 (5,160) Starting 2012 Model Year
Loader Breakout Force lbs. (kg)	11,375 (5,160) Starting 2009 Model Year
SAE Net hp (kW)	124 (92.5) Starting 2007 Model Year
SAE HP (KW)	137 (102) Starting 2010 Model Year
Weight lbs (kg)	24,141 (10.950) Starting 2010 Model Year

Backhoe specifications
Dig Depth	207 in
Reach From Swivel	264 in
Dig Depth - Extended	256 in
Load Height - Extended	204 in
Bucket Dig Force	17,746 lb
Reach From Swivel - Extended	311 in
Reach at Load Height - Extended	122 in
Load Height	175 in
Bucket Dig Force - Extended	17,746 lb
Loading Height	175 in
Bucket Rotation	198 °
Loading Reach	83 in
Stick Dig Force	11,780 lb
E-Stick Extended (1)	256 in
E-Stick Extended (2)	309 in
E-Stick Extended (3)	17,746 lb
E-Stick Extended (4)	9,009 lb
E-Stick Extended (5)	4,514 lb
E-Stick Retracted (1)	206 in
E-Stick Retracted (2)	264 in
E-Stick Retracted (3)	17,746 lb
E-Stick Retracted (4)	11,939 lb
E-Stick Retracted (5)	8,084 lb
Reach from Swing Pivot	264 in
Stick Lift at 2440 mm (8 ft)	8,401 lb

Loader specifications
Bucket Capacity	1.80 yd³
Bucket Capacity - General Purpose	1.80 yd³
Lift Capacity	5,860 lb
Lift Capacity at Full Height - Single Tilt	7,871 lb
Clearance at Max Dump Height	104 in
Bucket Breakout Force	11,375 lb
Bucket Width	96 in
Reach at Max Dump Height	32 in
Dig Depth	6 in
Bucket Breakout Force - Single Tilt	11,375 lb
Bucket Width - General Purpose	96 in
Dig Depth - Single Tilt	6 in
Dump Height at Maximum Angle - Single Tilt	104 in
Dump Reach at Maximum Angle - Single Tilt	32 in

Axle Ratings specifications
Dynamic (1)	20,233 lb
Dynamic (2)	20,503 lb
